90° bend PT76 FT

Item no. / Types

Width

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

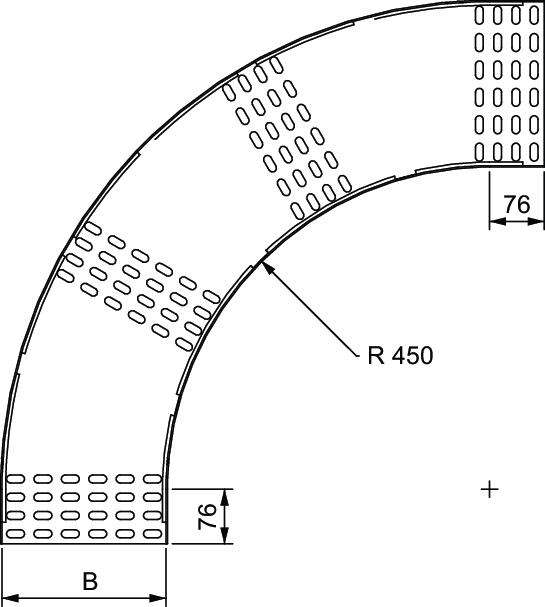

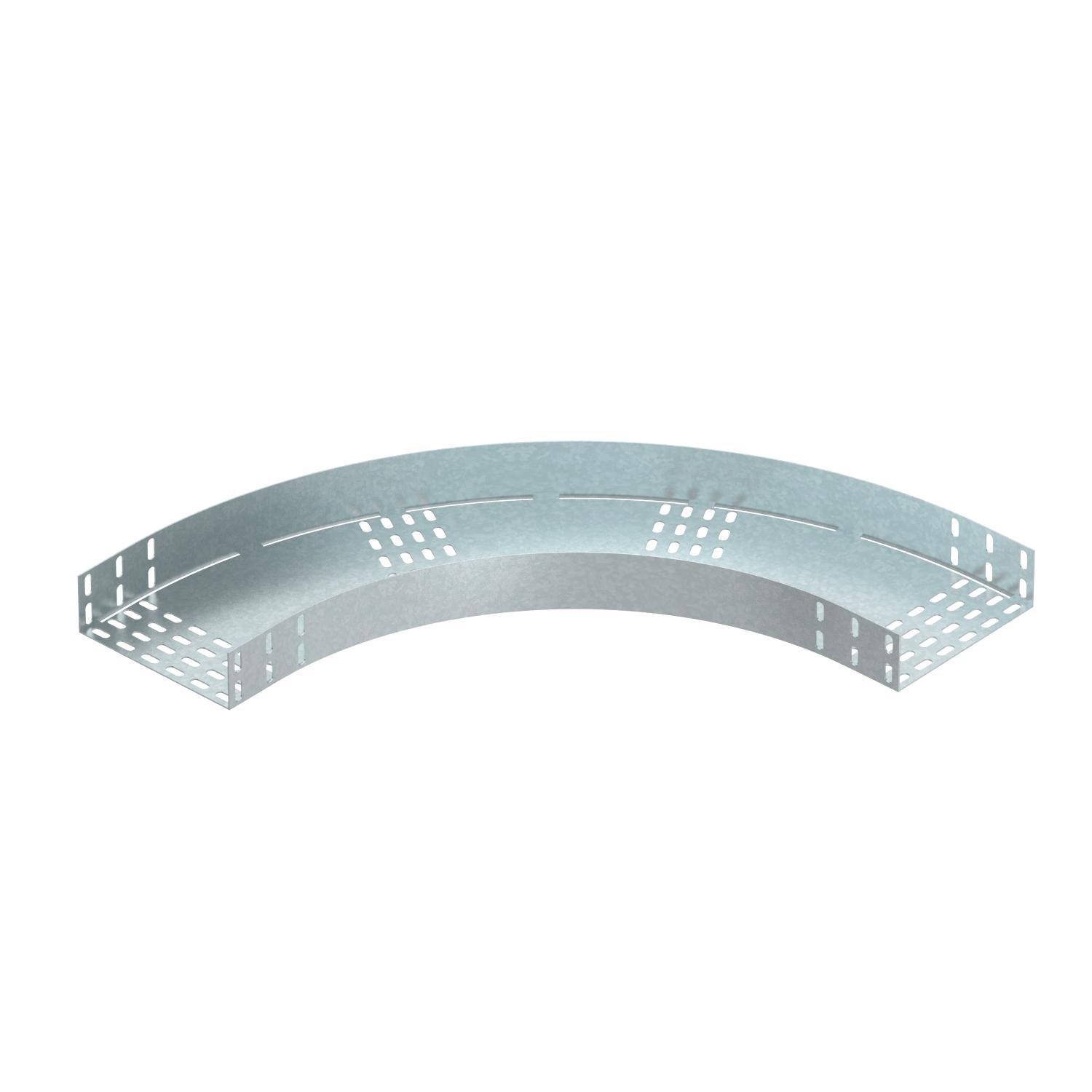

90° bend, horizontal, for the cable tray types PT76.

Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed

Dimension B	76 mm
Height	76 mm

Width	76 mm

All types

All types

Types	Width	Material	Surface	Item no.	Quantity	SSU
PT76 76 HDG	76 mm	Steel	Hot-dip galvanised	6900603	piece	1 piece
PT76 114 HDG	114 mm	Steel	Hot-dip galvanised	6900607	piece	1 piece
PT76 152 HDG	152 mm	Steel	Hot-dip galvanised	6900611	piece	1 piece
PT76 228 HDG	228 mm	Steel	Hot-dip galvanised	6900615	piece	1 piece
PT76 304 HDG	304 mm	Steel	Hot-dip galvanised	6900619	piece	1 piece
PT76 457 HDG	457 mm	Steel	Hot-dip galvanised	6900623	piece	1 piece
PT76 609 HDG	609 mm	Steel	Hot-dip galvanised	6900627	piece	1 piece
