Angle connector OL55 55 | 1.6

morepic-1

morepic-2

Angle connector OL55

Item no. 6902789 | EAN 4012196068982

Item no. / Types	6902789 / OL55 ADJ SPL

Height	55 mm

Plate thickness	1.6 mm

Product description

Product description

Adjustable connector set for the connection of the cable ladder types OL55 of side height 55 mm.

Technical data

Technical data

Dimension	130x50x30
Height	55 mm
Material	Steel

Plate thickness	1,6 mm
Suitable for cable tray system height	55 mm
Surface	Hot-dip galvanised

All types

All types

Types	Height	Plate thickness	Item no.	Quantity	SSU
OL55 ADJ SPL	55 mm	1.6 mm	6902789	piece	1 piece

Downloads

Data sheet OL55 ADJ SPL / 6902789 , 0.17MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Mounting instructions General information on the mounting , 2.65MB , pdf

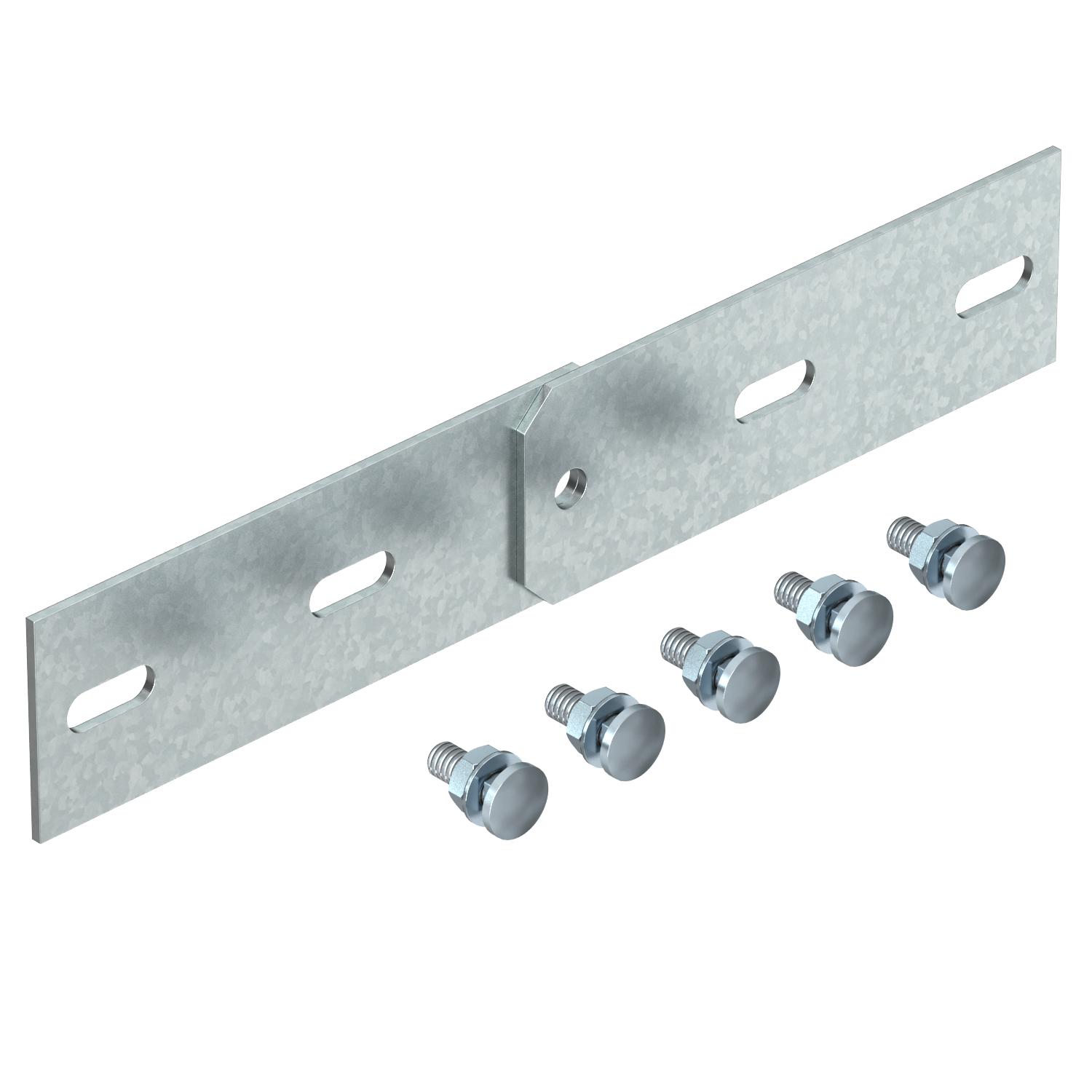

Product graphic OL55 ADJ SPL / 6902789, 79.96 kB, jpg

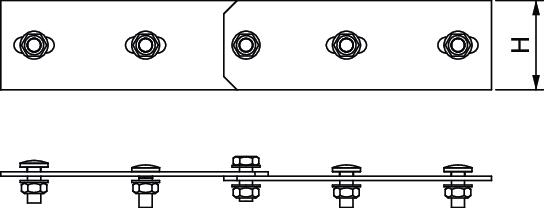

Scale drawing OL55 ADJ SPL / 6902789, 14.92 kB, jpg
