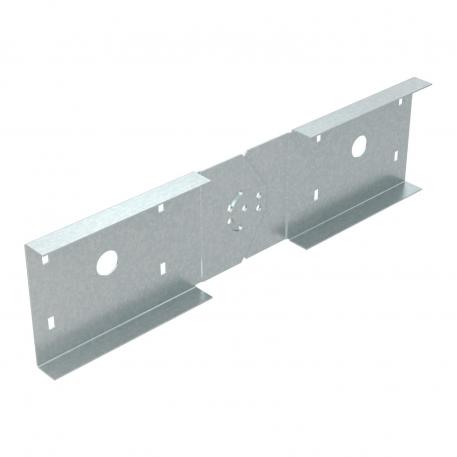

Angle connector SSP100 100 | 2

morepic-1

morepic-2

Angle connector SSP100

Item no. 6904899 | EAN 4012196074143

Item no. / Types	6904899 / SSP100 ADJ SPL

Height	100 mm

Plate thickness	2 mm

Product description

Product description

Angle connector set for the connection of the SSP100 cable ladder types of side height 100 mm.

Technical data

Dimensions

Height	100 mm
Material	Steel
Plate thickness	2 mm

Suitable for cable tray system height	100 mm
Surface	Hot-dip galvanised

All types

All types

Types	Height	Plate thickness	Item no.	Quantity	SSU
SSP100 ADJ SPL	100 mm	2 mm	6904899	piece	1 piece

Downloads

Data sheet SSP100 ADJ SPL / 6904899 , 0.14MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

UK Declaration of Conformity SSP100 ADJ SPL / 6904899 , 0.09MB , pdf

Download

Mounting instructions General information on the mounting , 2.65MB , pdf

Product graphic SSP100 ADJ SPL / 6904899, 59.06 kB, jpg

Scale drawing SSP100 ADJ SPL / 6904899, 12.96 kB, jpg

SSP100 ADJ SPL / 6904899
