Cable duct OL9000 FS 3000 | 127 | 76.2 | 0.8 | Strip galvanized | Steel

morepic-1

morepic-2

Cable duct OL9000 FS

Item no. 6902053 | EAN 4012196067015

Item no. / Types	6902053 / OL9000 PG

Length	3000 mm

Width	127 mm

Height	76.2 mm

Plate thickness	0.8 mm

Surface	Strip galvanized

Material	Steel

Product description

Product description

Cable duct OL9000PG with the dimensions 76.2 x 127 x 3000 mm.

Technical data

Technical data

Antibacterial treatment	no
Dimension	127x77x3000
Height	76,2 mm
Length	3000 mm

Material	Steel
Plate thickness	0,8 mm
Surface	Strip galvanized
Width	127 mm

All types

All types

Types	Length	Width	Height	Plate thickness	Surface	Material	Item no.	Quantity	SSU
OL9000 PG	3000 mm	127 mm	76.2 mm	0.8 mm	Strip galvanized	Steel	6902053	m	3 m

Downloads

Data sheet OL9000 PG / 6902053 , 0.39MB , pdf

Guide KTS cable tray systems , 1.61MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Cable support systems , 54.52MB , pdf

EU declaration of conformity OL9000 PG / 6902053 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.65MB , pdf

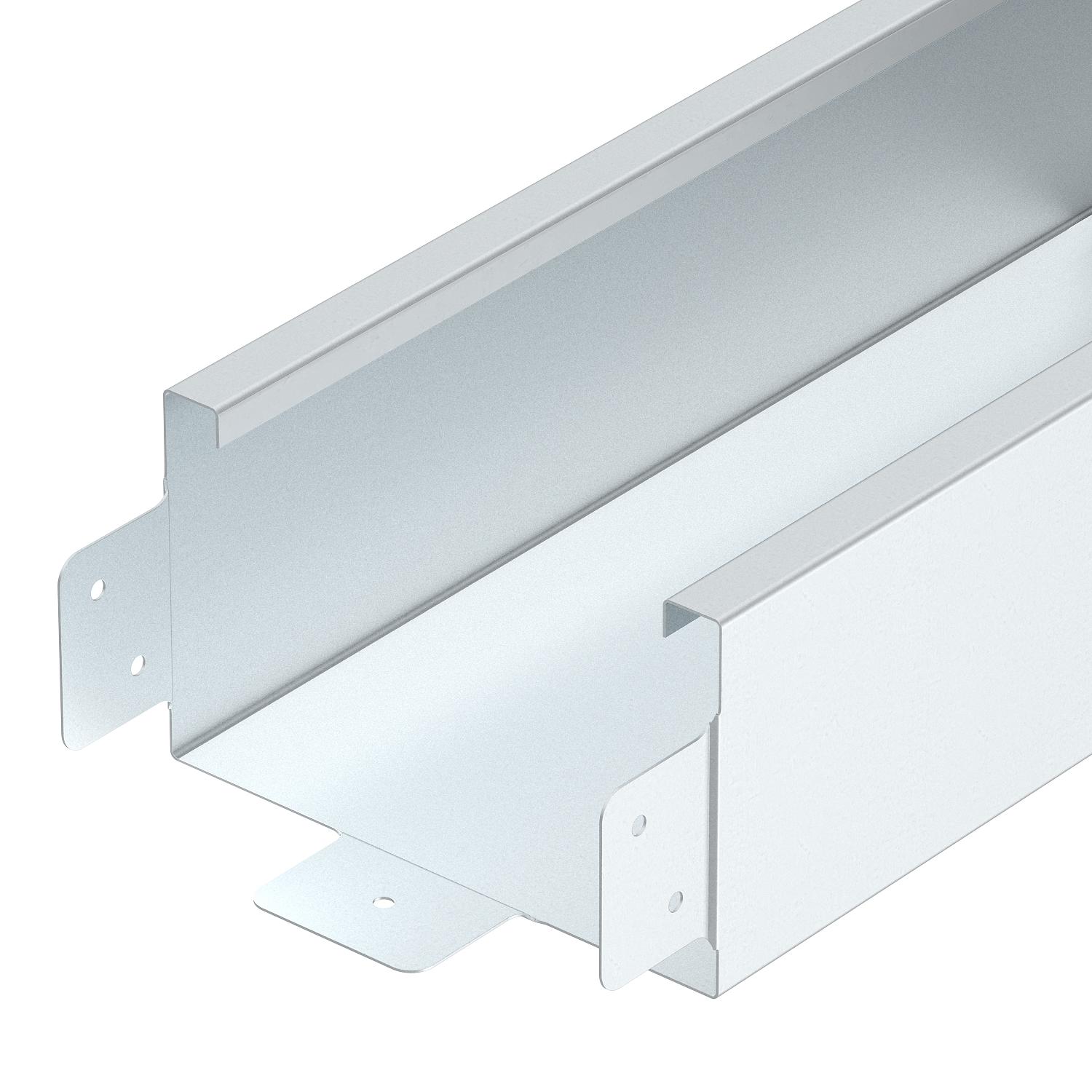

Product graphic OL9000 PG / 6902053, 128.74 kB, jpg

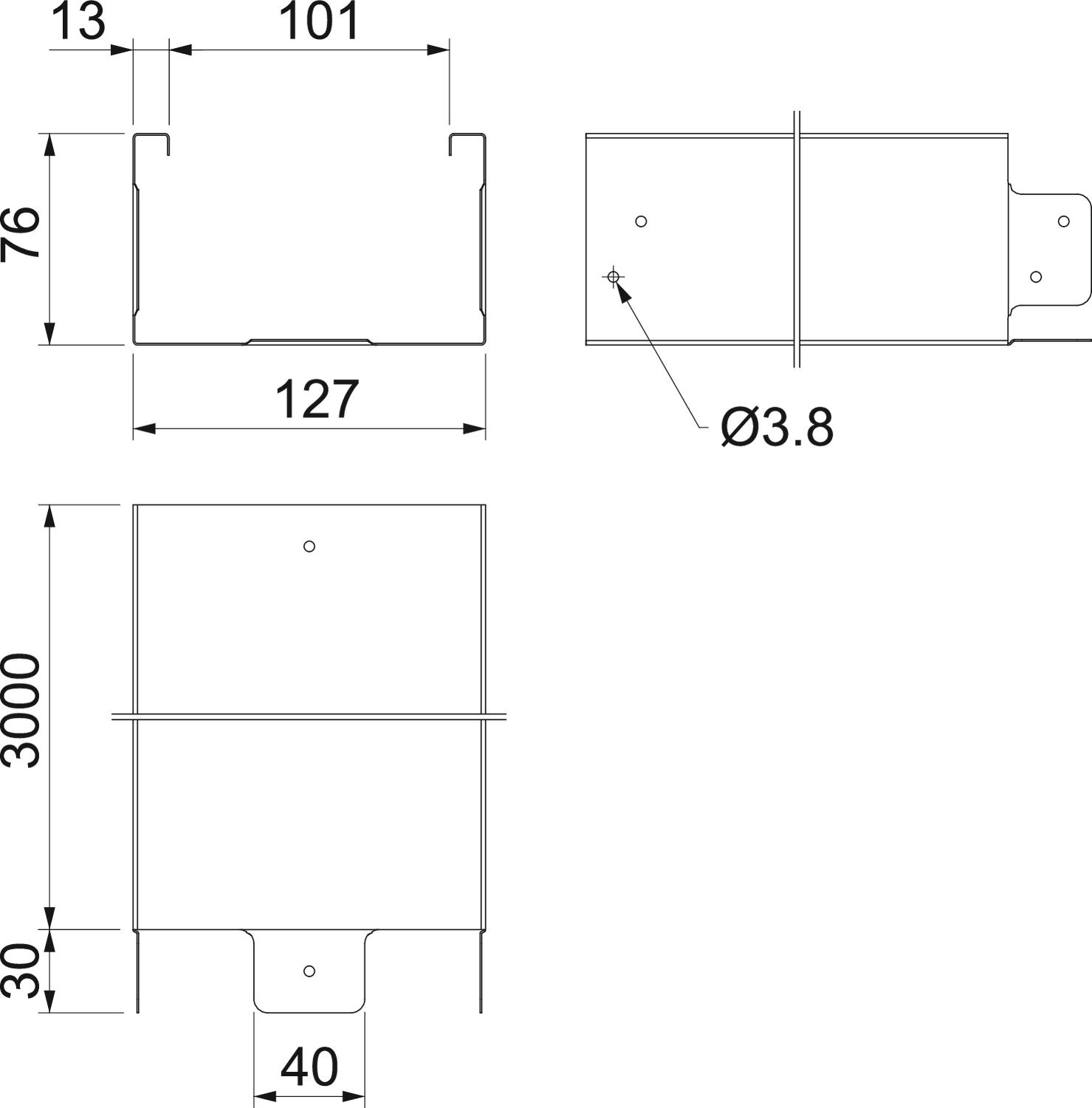

Scale drawing OL9000 PG / 6902053, 57.66 kB, jpg

OL9000 PG / 6902053
