Cable ladder TS225, 3 m

Item no. / Types

Length	3000 mm

Width

Rail thickness	2.5 mm

Product description

Product description

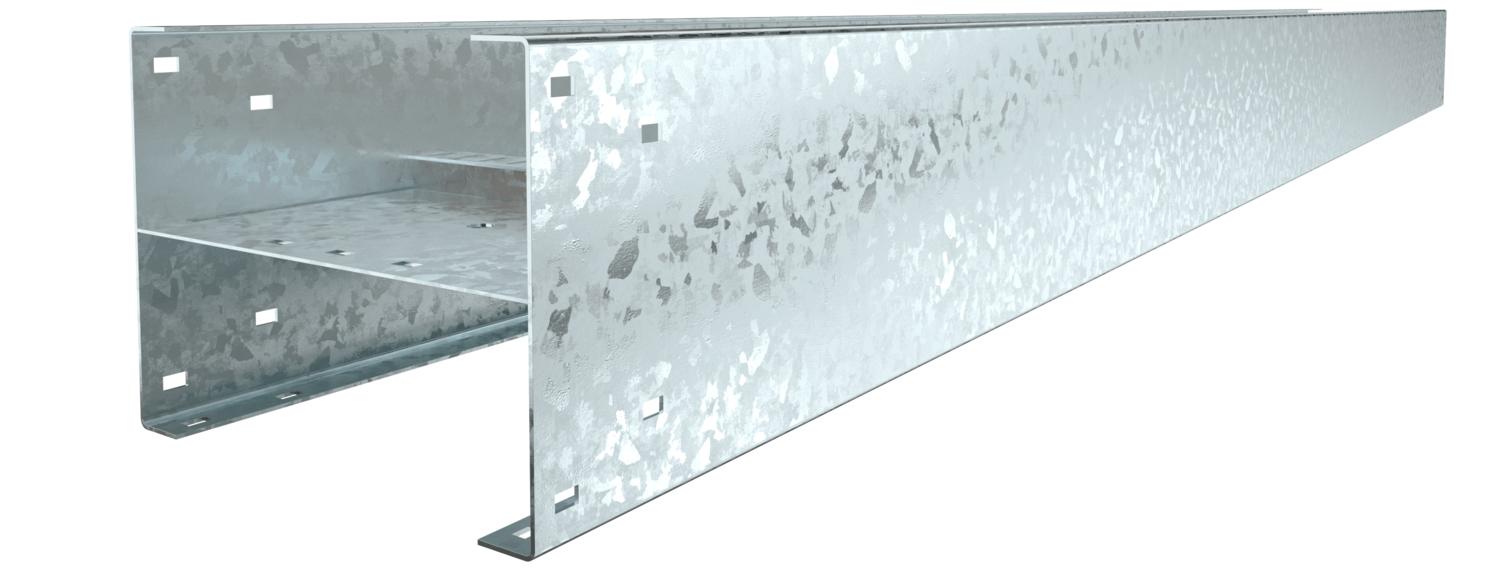

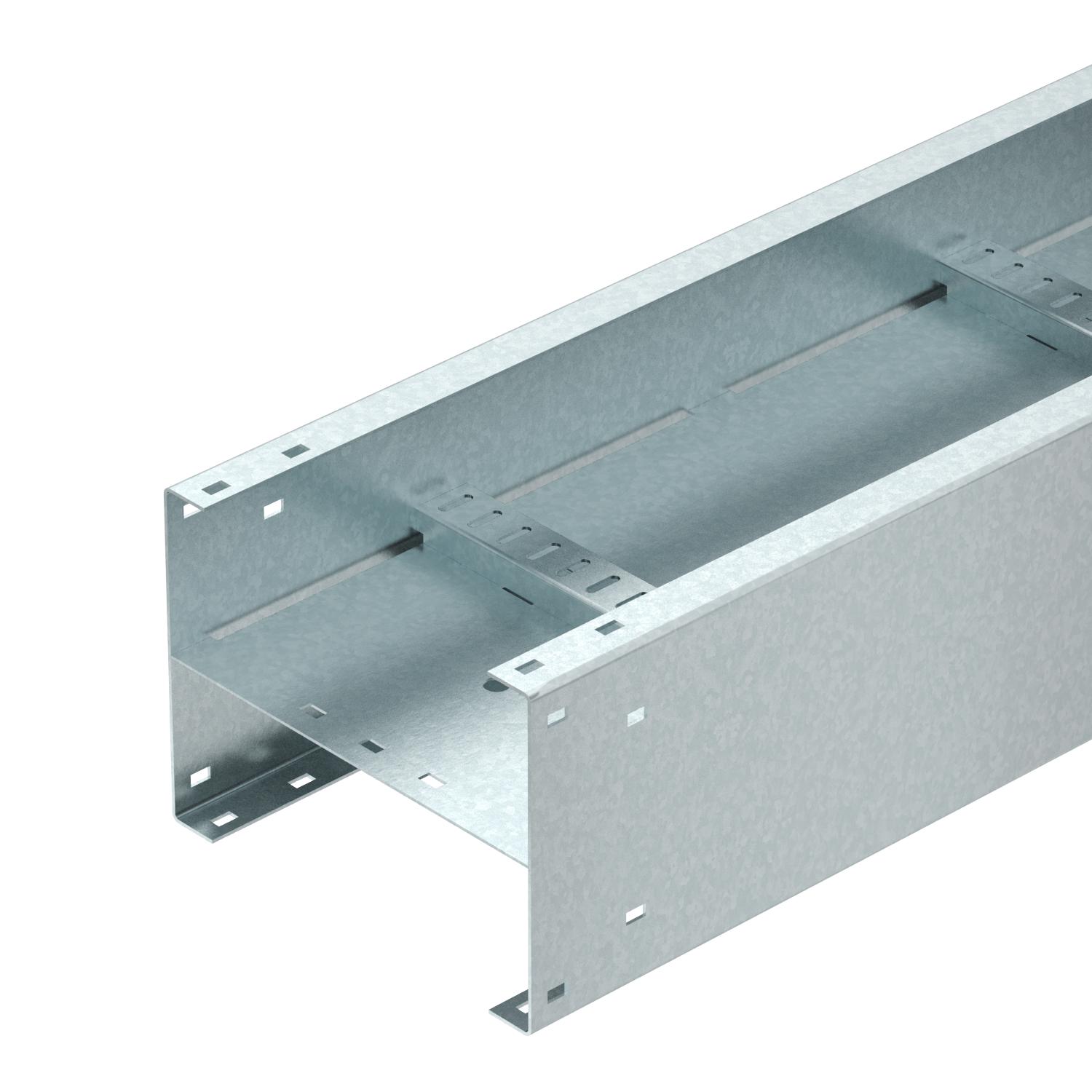

Double-sided TS225 cable ladder system, welded version, with closed base. The side height is 225 mm with a supply length of 3,000 mm.

Technical data

Rung distance	300 mm
Surface	Hot-dip galvanised

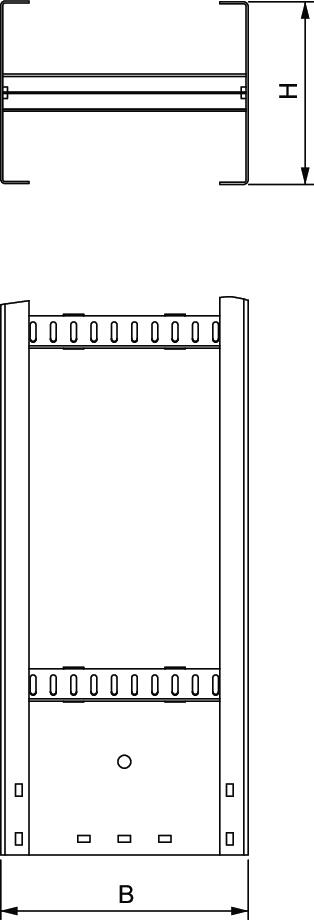

Dimension B	300 mm
Height	225 mm

Length	3000 mm
Width	300 mm

All types

All types

Types	Length	Width	Rail thickness	Item no.	Quantity	SSU
TS225 300 HDG	3000 mm	300 mm	2.5 mm	6906203	m	3 m
TS225 450 HDG	3000 mm	450 mm	2.5 mm	6906207	m	3 m
TS225 600 HDG	3000 mm	600 mm	2.5 mm	6906211	m	3 m
TS225 900 HDG	3000 mm	900 mm	2.5 mm	6906215	m	3 m

Downloads

Data sheet TS225 300 HDG / 6906203 , 0.16MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf
