Cable-pipe clip OLTC HDG

Item no. / Types

For diameter

Clamping range D, min.

Clamping range D, max.

Product description

Product description

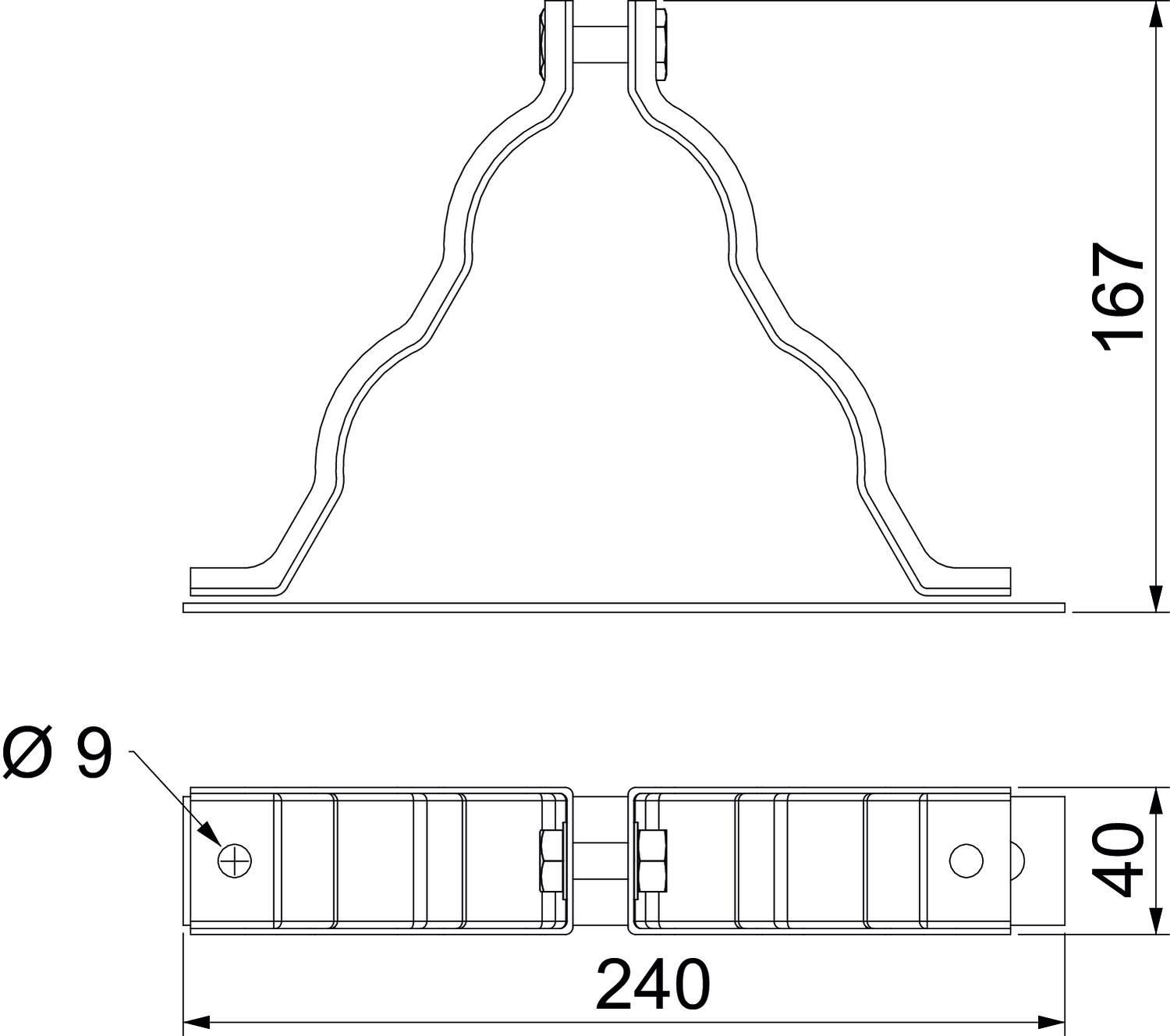

Fastening clip with retaining plate to accept 3 cables or pipes.
Complete with bolts, nuts, washers and head plates.

Technical data

Dimension B	132 mm

All types

All types

Types	For diameter	Clamping range D, min.	Clamping range D, max.	Item no.	Quantity	SSU
OLTC01/45 HDG	39-45	90 mm	130 mm	1500545	piece	1 piece
OLTC01/51 HDG	46-51	130 mm	170 mm	1500551	piece	1 piece
OLTC01/59 HDG	52-59	145 mm	185 mm	1500559	piece	1 piece
OLTC01/70 HDG	60-70	170 mm	210 mm	1500570	piece	1 piece
OLTC01/75 HDG	70-75	170 mm	210 mm	1500575	piece	1 piece

Downloads

Data sheet OLTC01/59 HDG / 1500559 , 0.17MB , pdf
