Clamp clip 2056 F-foot, 1-fold, plastic pressure sleeve, FT 40 | 46 | 5

Clamp clip 2056 F-foot, 1-fold, plastic pressure sleeve, FT

Item no. 1187638 | EAN 4012196854134

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

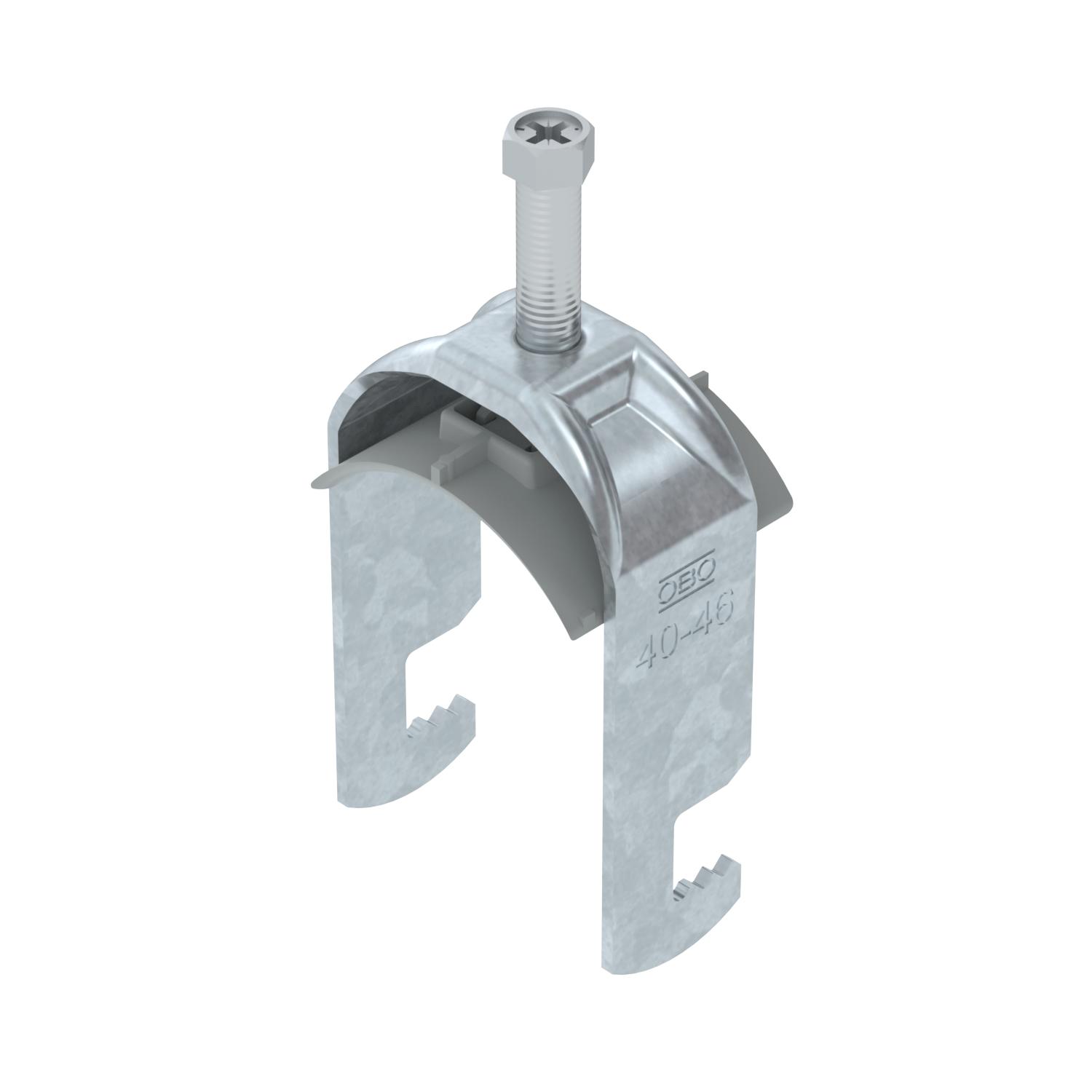

Clamp clip with F-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on flat bars. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	46 mm
Clamping range D, min.	40 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,2141 kg CO2e / 1 Piece
Dimension	40-46mm

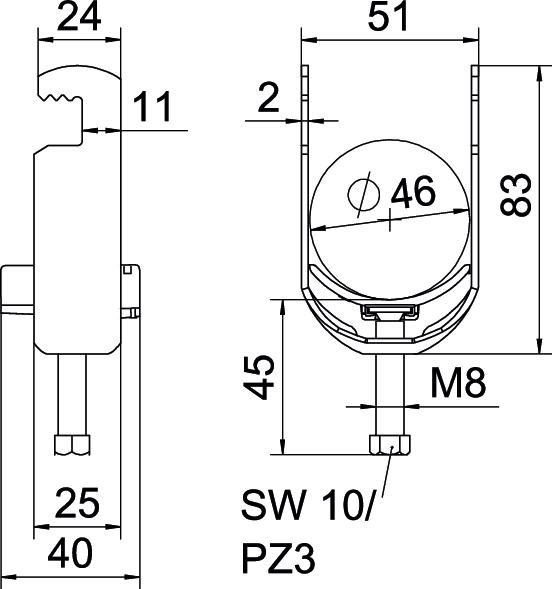

Dimension A	25 mm
Dimension B	51 mm
Dimension C	40 mm
Dimension G (mm)	M8
Dimension H	83 mm
Dimension L	45 mm
Dimension t	2 mm
For pipe diameter, max.	46 mm
For pipe diameter, min.	40 mm
Halogen-free	yes
Height	83 mm
Length	25 mm

Length of external dimensions	40 mm
Material	Steel
Material addition	Steel
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	5 Nm
Mounting type	Flat profile
Number of cables/pipes	1
Plate thickness	2 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M8
Width	51 mm
With counter-trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-F1-K-12 FT	8 mm	12 mm	3 Nm	1187602	piece	100 piece
BS-F1-K-16 FT	12 mm	16 mm	3 Nm	1187608	piece	1 piece
BS-F1-K-22 FT	16 mm	22 mm	3 Nm	1187614	piece	100 piece
BS-F1-K-28 FT	22 mm	28 mm	3 Nm	1187620	piece	1 piece
BS-F1-K-34 FT	28 mm	34 mm	3 Nm	1187626	piece	100 piece
BS-F1-K-40 FT	34 mm	40 mm	3 Nm	1187632	piece	100 piece
BS-F1-K-46 FT	40 mm	46 mm	5 Nm	1187638	piece	100 piece
BS-F1-K-52 FT	46 mm	52 mm	5 Nm	1187644	piece	100 piece
BS-F1-K-58 FT	52 mm	58 mm	5 Nm	1187650	piece	50 piece
BS-F1-K-64 FT	58 mm	64 mm	5 Nm	1187656	piece	1 piece
