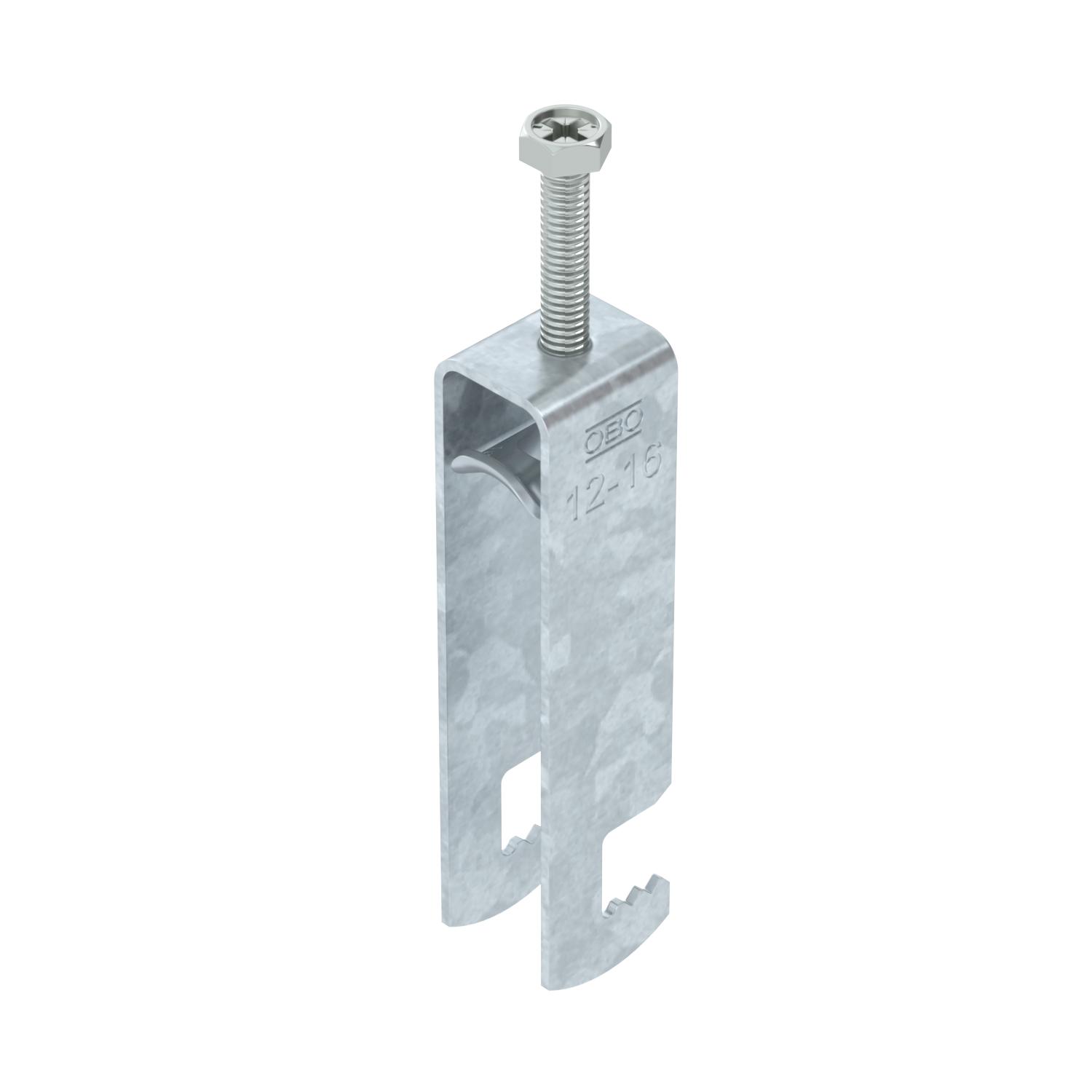

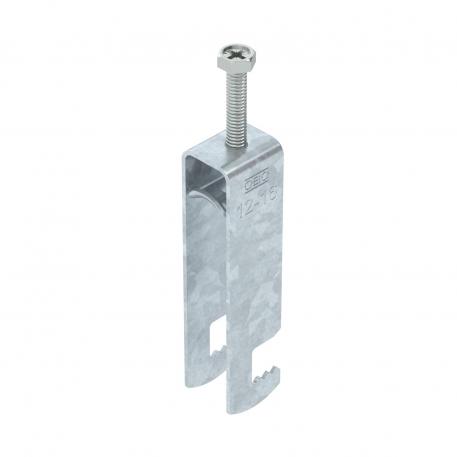

Clamp clip 2056, F-foot, triple, metal pressure trough, FT 12 | 16 | 3

Clamp clip 2056, F-foot, triple, metal pressure trough, FT

Item no. 1188218 | EAN 4012197405236

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque	3 Nm

Product description

Product description

Clamp clip with F-foot, metal pressure trough with rounded edges to protect the cable. For vertical and horizontal mounting of 3 single cables on flat bars. With 1-start screw thread on pressure trough, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for mounting indoors and outdoors. Multiple cables should be separated by double troughs. We recommend the use of a counter-trough.

Technical data

Technical data

Clamping range D, max.	16 mm
Clamping range D, min.	12 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,1905 kg CO2e / 1 Piece

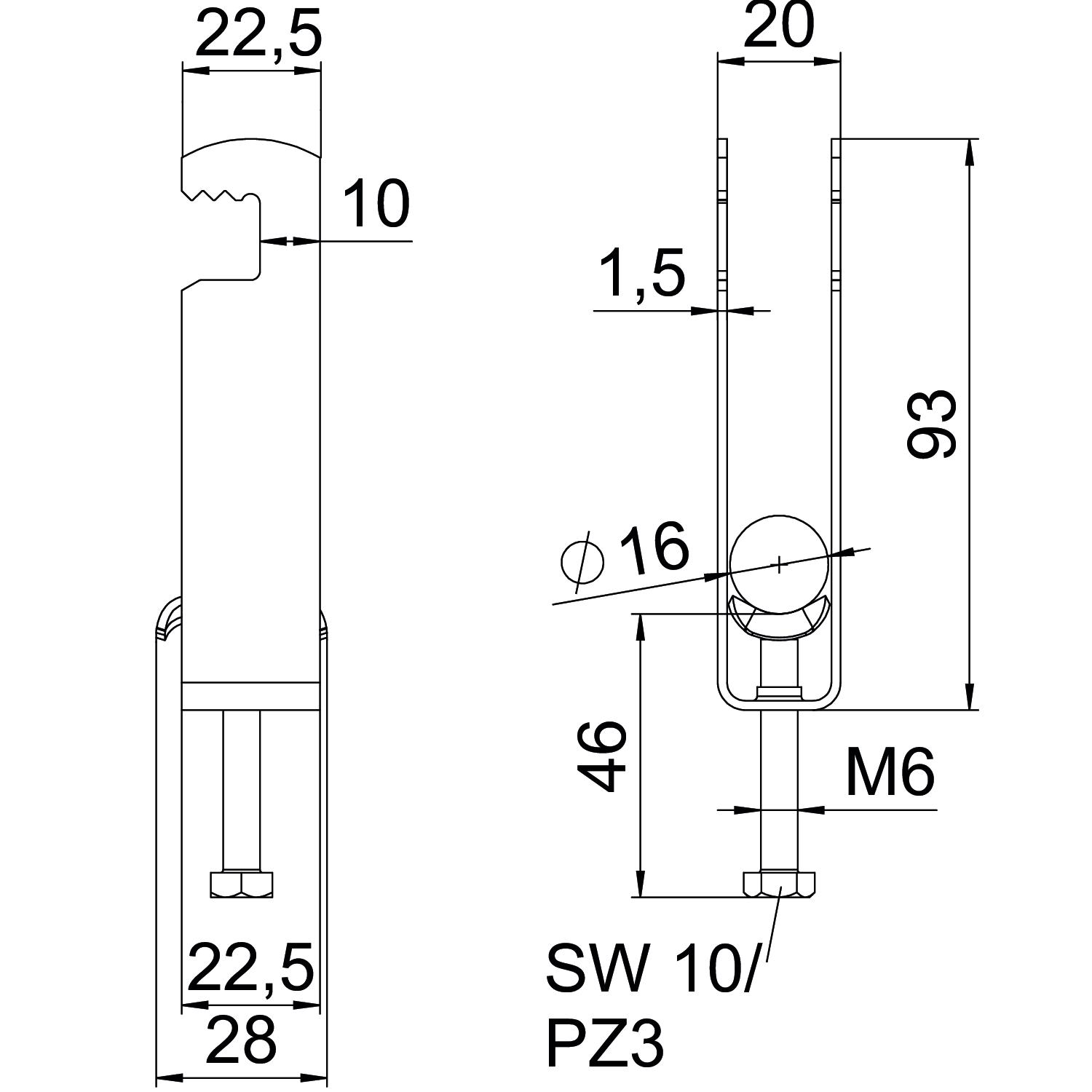

Dimension	12-16mm
Dimension A	22,5 mm
Dimension B	20 mm
Dimension C	28 mm
Dimension G (mm)	M6
Dimension H	93 mm
Dimension L	46 mm
Dimension t	1,5 mm
For pipe diameter, max.	16 mm
For pipe diameter, min.	12 mm
Halogen-free	yes
Height	93 mm

Length	22,5 mm
Length of external dimensions	28 mm
Material	Steel
Material addition	Steel
Max. Tightening torque	3 Nm
Mounting type	Flat profile
Number of cables/pipes	3
Plate thickness	1,5 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M6
Width	20 mm
With metal trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-F3-M-12 FT	8 mm	12 mm	3 Nm	1188215	piece	50 piece
BS-F3-M-16 FT	12 mm	16 mm	3 Nm	1188218	piece	50 piece
BS-F3-M-22 FT	16 mm	22 mm	3 Nm	1188221	piece	50 piece
BS-F3-M-28 FT	22 mm	28 mm	3 Nm	1188224	piece	50 piece
