Clamp clip 2056, H-foot, single, metal pressure trough, A4 40 | 46 | 5

Clamp clip 2056, H-foot, single, metal pressure trough, A4

Item no. 1188539 | EAN 4012197416126

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

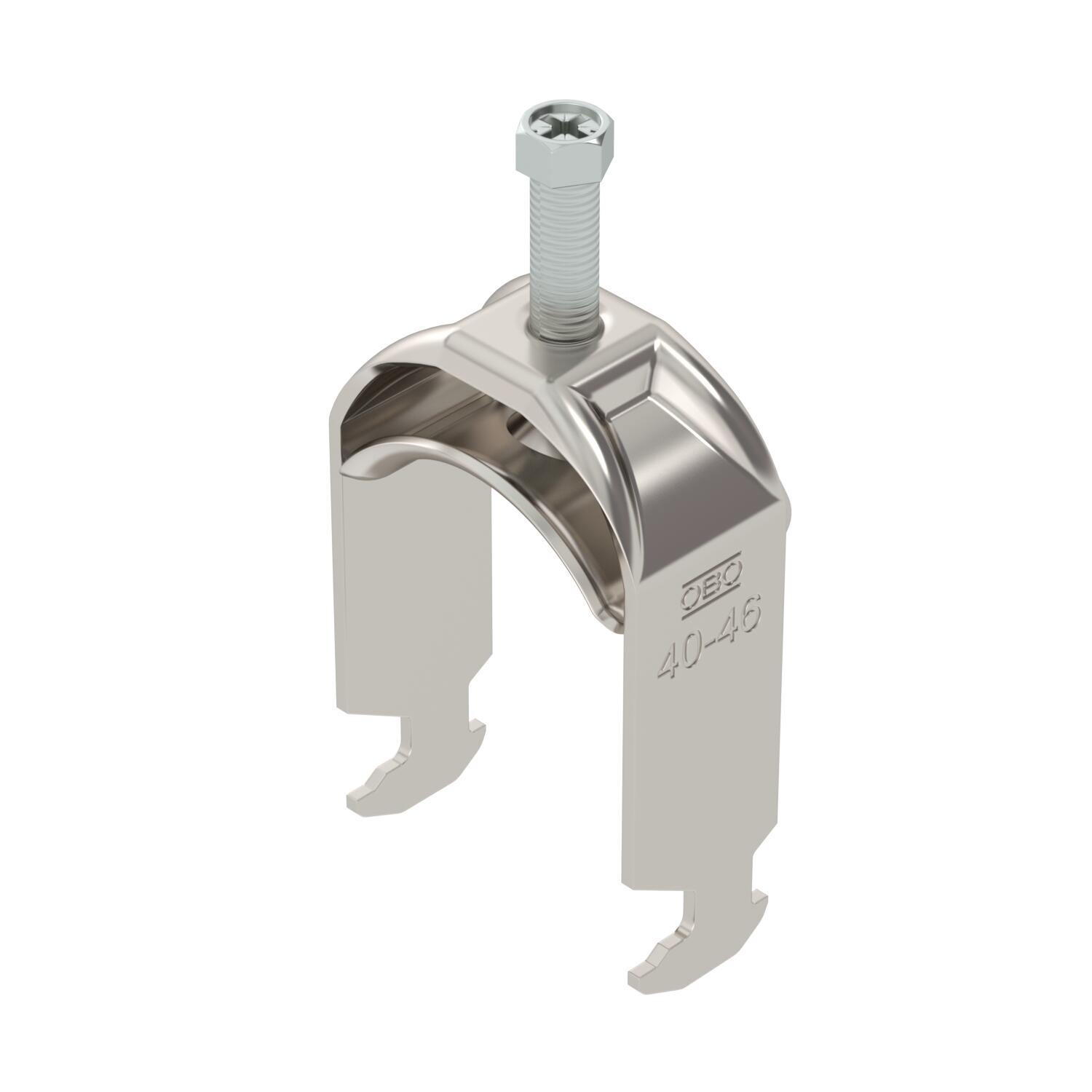

Clamp clip with hammerhead foot, metal pressure trough with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width of 16–17 mm. With 1-start screw thread on pressure trough, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for mounting indoors and outdoors. We recommend the use of a counter-trough.

Technical data

Technical data

Clamping range D, max.	46 mm
Clamping range D, min.	40 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,6086 kg CO2e / 1 Piece

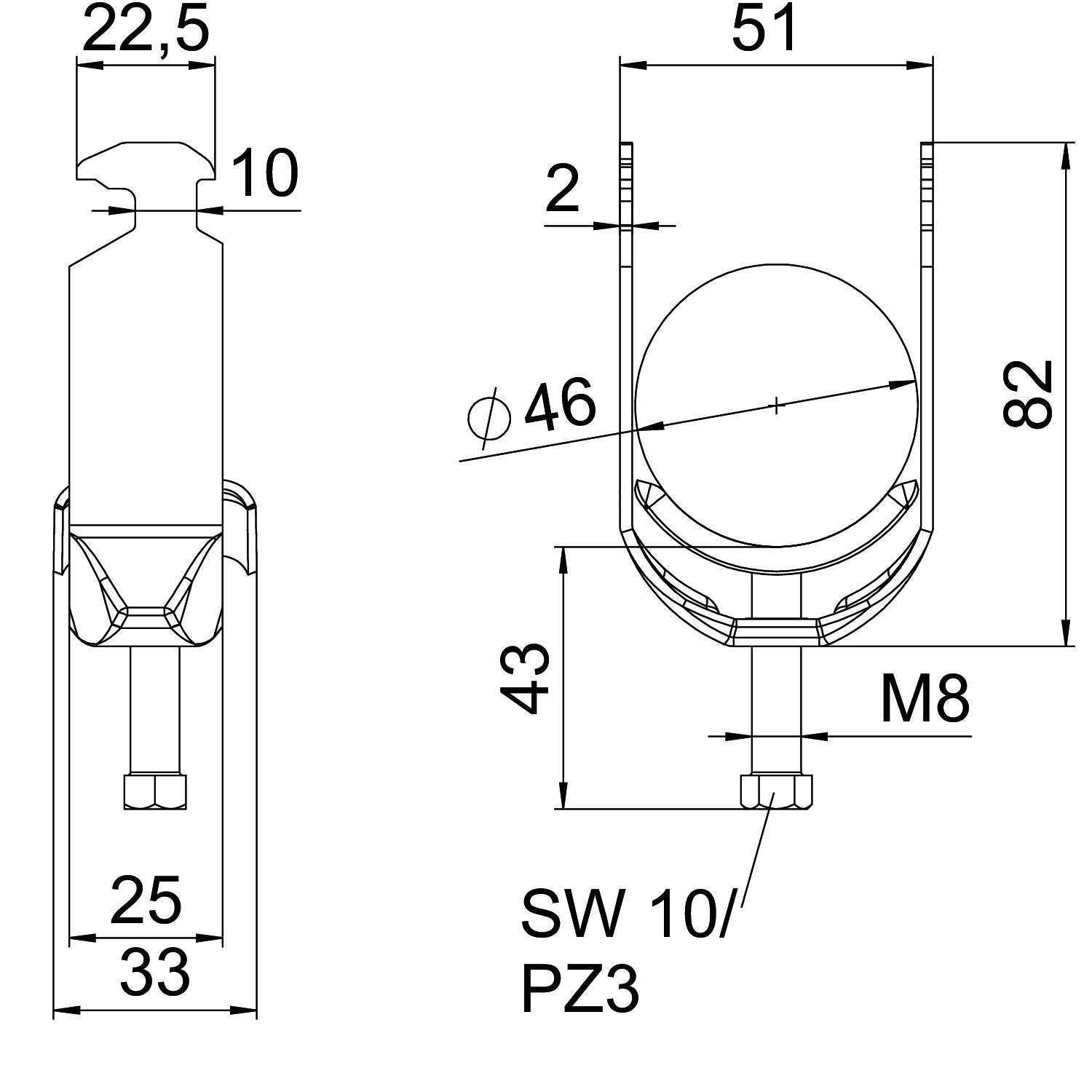

Dimension	40-46mm
Dimension A	25 mm
Dimension B	51 mm
Dimension C	33 mm
Dimension G (mm)	M8
Dimension H	82 mm
Dimension L	43 mm
Dimension t	2 mm
For pipe diameter, max.	46 mm
For pipe diameter, min.	40 mm
for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm
Halogen-free	yes

Height	82 mm
Length	25 mm
Length of external dimensions	33 mm
Maintain electrical functions	yes
Material	Stainless steel 1.4571
Material addition	Rustproof steel
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	2 mm
Slot width	10 mm
Surface	Bright, treated
Surface addition	Untreated
Thread	M8
Width	51 mm
With metal trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-H1-M-12 A4	8 mm	12 mm	3 Nm	1188521	piece	100 piece
BS-H1-M-16 A4	12 mm	16 mm	3 Nm	1188523	piece	100 piece
BS-H1-M-22 A4	16 mm	22 mm	3 Nm	1188527	piece	100 piece
BS-H1-M-28 A4	22 mm	28 mm	3 Nm	1188530	piece	100 piece
BS-H1-M-34 A4	28 mm	34 mm	3 Nm	1188533	piece	100 piece
BS-H1-M-40 A4	34 mm	40 mm	3 Nm	1188536	piece	100 piece
BS-H1-M-46 A4	40 mm	46 mm	5 Nm	1188539	piece	100 piece
BS-H1-M-52 A4	46 mm	52 mm	5 Nm	1188541	piece	100 piece
BS-H1-M-58 A4	52 mm	58 mm	5 Nm	1188545	piece	100 piece
BS-H1-M-64 A4	58 mm	64 mm	5 Nm	1188548	piece	100 piece
BS-H1-M-70 A4	64 mm	70 mm	5 Nm	1188551	piece	50 piece
BS-H1-M-76 A4	70 mm	76 mm	5 Nm	1188554	piece	25 piece
