Clamp clip 2056 N-foot, 1-fold, plastic pressure sleeve, A2 40 | 46 | 5

Clamp clip 2056 N-foot, 1-fold, plastic pressure sleeve, A2

Item no. 1188138 | EAN 4012196869107

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

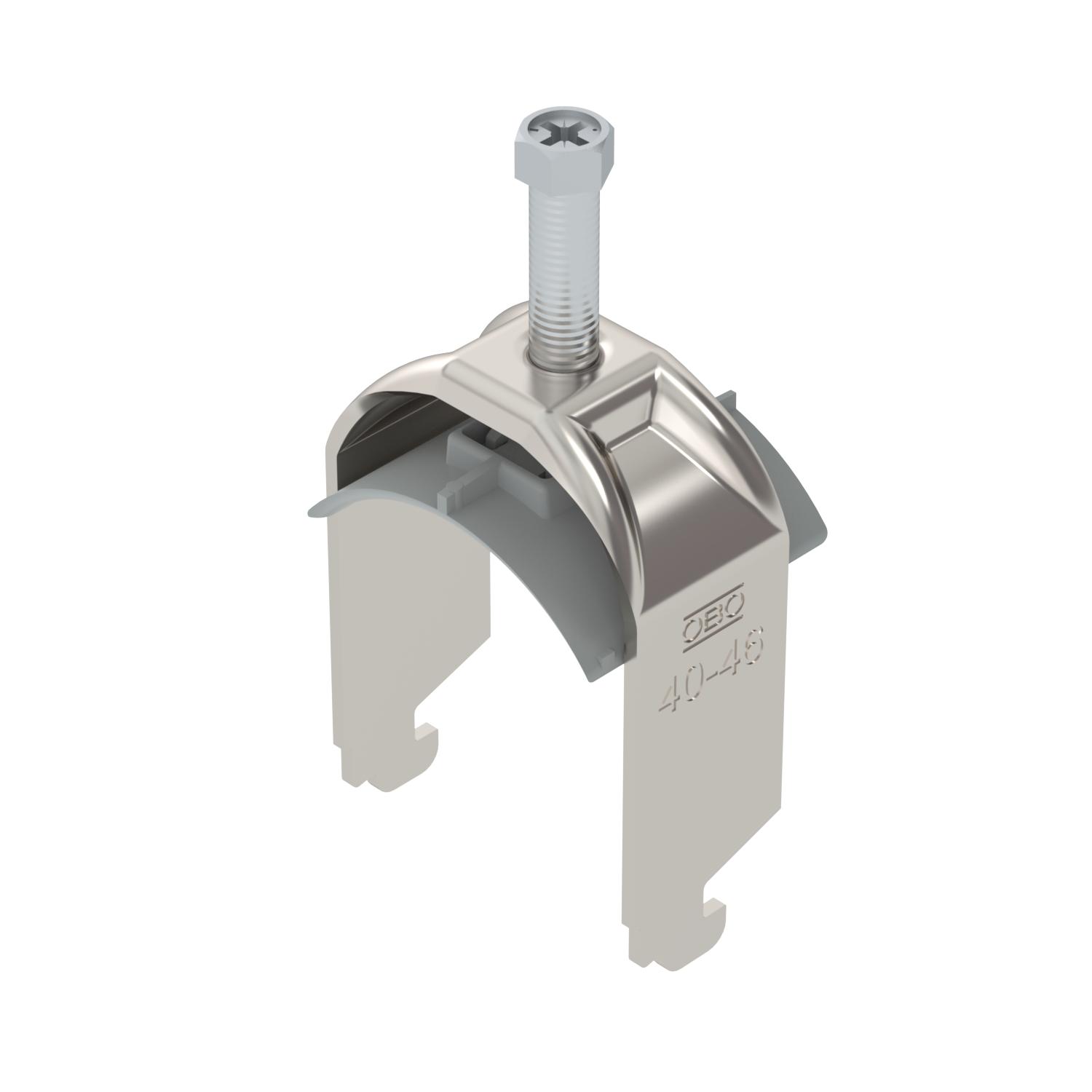

Clamp clip with N-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 11‒12 mm With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	46 mm
Clamping range D, min.	40 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,5121 kg CO2e / 1 Piece
Dimension	40-46mm

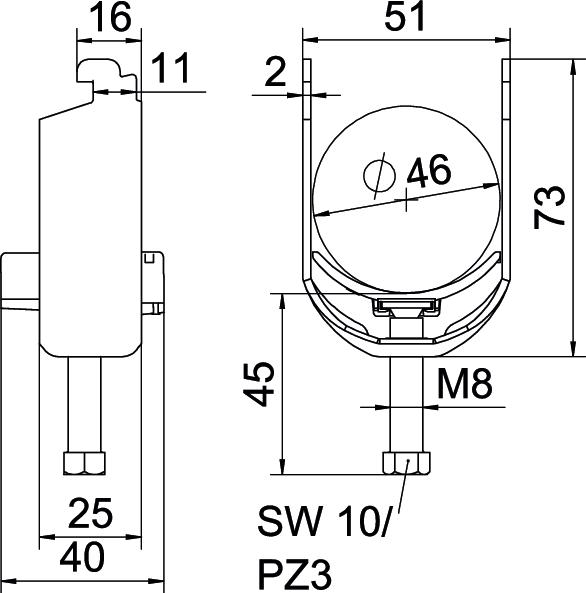

Dimension A	25 mm
Dimension B	51 mm
Dimension C	40 mm
Dimension G (mm)	M8
Dimension H	73 mm
Dimension L	45 mm
Dimension t	2 mm
for rail with slot width (with interval), max.	12 mm
for rail with slot width (with interval), min.	11 mm
Halogen-free	yes
Height	73 mm
Length	25 mm

Length of external dimensions	40 mm
Material	Stainless steel 1.4301
Material addition	Rustproof steel
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	2 mm
Slot width	10 mm
Surface	Bright, treated
Surface addition	Untreated
Thread	M8
Width	51 mm
With counter-trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-N1-K-12 A2	8 mm	12 mm	3 Nm	1188102	piece	50 piece
BS-N1-K-16 A2	12 mm	16 mm	3 Nm	1188108	piece	1 piece
BS-N1-K-22 A2	16 mm	22 mm	3 Nm	1188114	piece	50 piece
BS-N1-K-28 A2	22 mm	28 mm	3 Nm	1188120	piece	1 piece
BS-N1-K-34 A2	28 mm	34 mm	3 Nm	1188126	piece	1 piece
BS-N1-K-40 A2	34 mm	40 mm	3 Nm	1188132	piece	25 piece
BS-N1-K-46 A2	40 mm	46 mm	5 Nm	1188138	piece	25 piece
