Note: This article is discontinued.
You can find the current article here: 1186230 / Clamp clip 2056 H-foot, 2-fold, plastic pressure sleeve, FT
Clamp clip, double, FT plastic pressure trough
Item no. 1161342 | EAN 4012195065593
- Product description
-
Product descriptionSuitable for all C profile rails with slot width 16–17 mm.
Hot-dip galvanised steel clamp and bolt, polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
-
- Technical data
-
Technical data

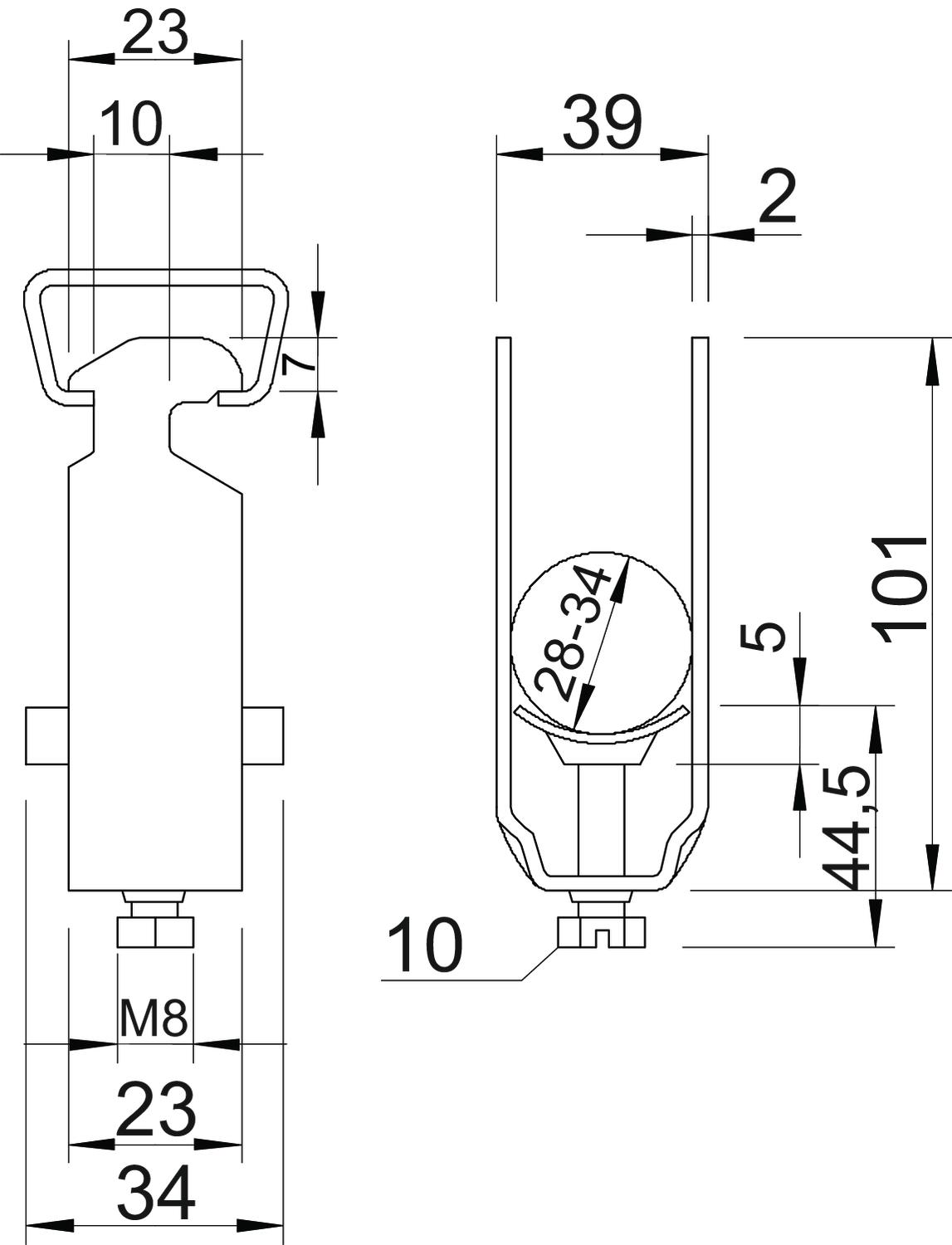

Clamping range D, max. 34 mm Clamping range D, min. 28 mm CO2 Footprint (GWP) Cradle-to-Gate 0,179 kg CO₂e / 1 Piece Dimension 28-34mm Dimension A 23 mm Dimension B 39 mm Dimension C 34 mm Dimension G (mm) M8 Dimension H 101 mm Dimension L 44,5 mm Dimension t 2 mm Dimension x 6 mm for rail with slot width (with interval), max. 17 mm for rail with slot width (with interval), min. 16 mm Halogen-free yes Impact-resistant no Material Steel Material addition Steel Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 5 Nm Mounting type Profile rail Number of cables/pipes 2 Surface Hot-dip galvanised Surface addition hot galvanised With counter-trough no With plastic trough yes - All types
- Downloads
-
Data sheet 2056 2 34 FT / 1161342 , 0.23MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 2056 2 34 FT / 1161342 , 0.10MB , pdfREACH Declaration of conformity 2056 2 34 FT / 1161342 , 0.12MB , pdfRoHS Declaration of conformity 2056 2 34 FT / 1161342 , 0.12MB , pdf
