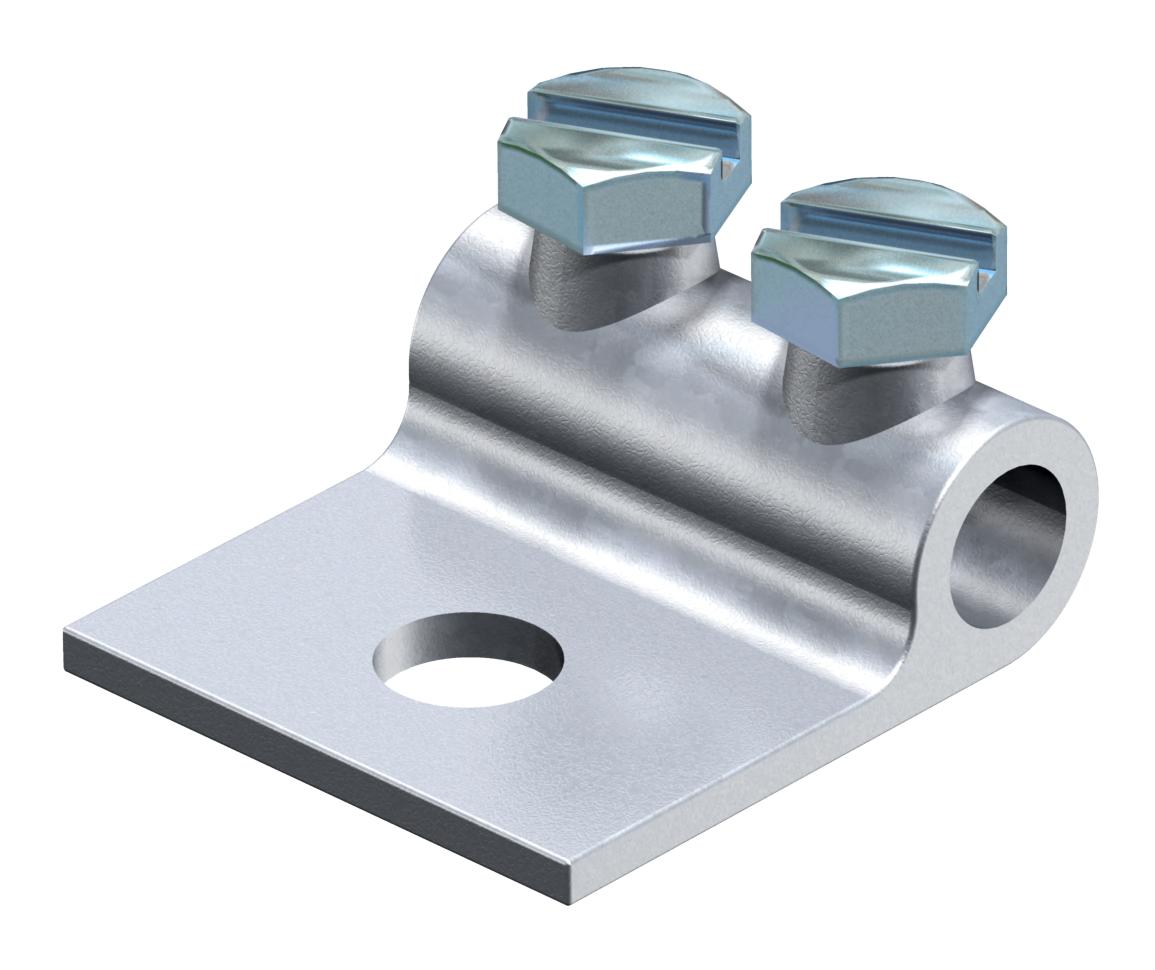

Clamping shoe
Item no. 5325307 | EAN 4012195421870
- Product description
-

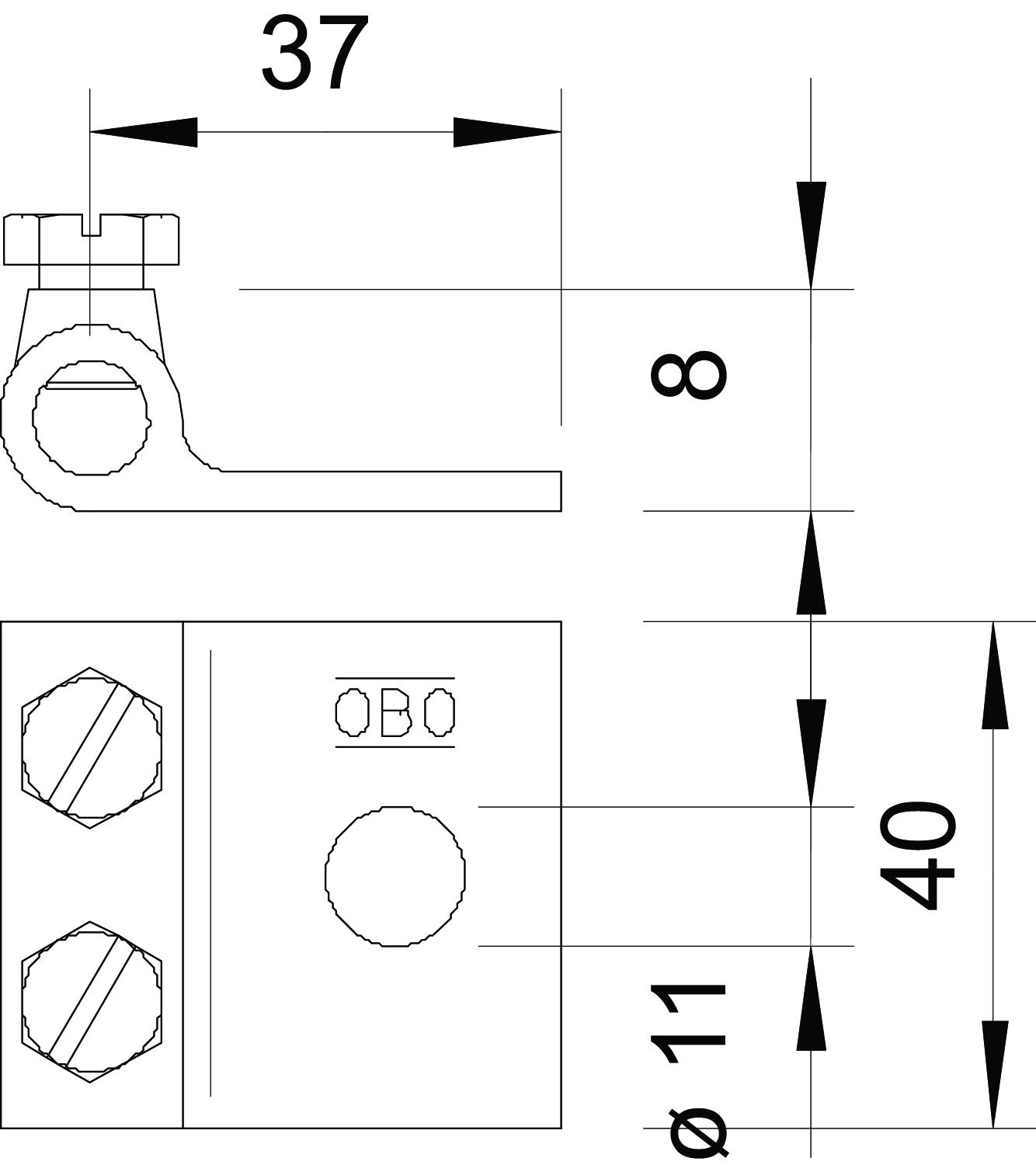

Product description• With Ø 11 mm attaching hole
• 2 hexagonal bolts M8 x 16
• Bolts hot-dip galvanised steel and clamping element hot dipped galvanised cast steel
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,1771 kg CO2e / 1 Piece Dimension 8mm Fit Rd 8 mm Material cast steel Surface Hot galvanized Type of connector Clamping shoe Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 319 8 / 5325307 , 0.17MB , pdfEU declaration of conformity 319 8 / 5325307 , 0.06MB , pdfREACH Declaration of conformity 319 8 / 5325307 , 0.12MB , pdfRoHS Declaration of conformity 319 8 / 5325307 , 0.13MB , pdf
