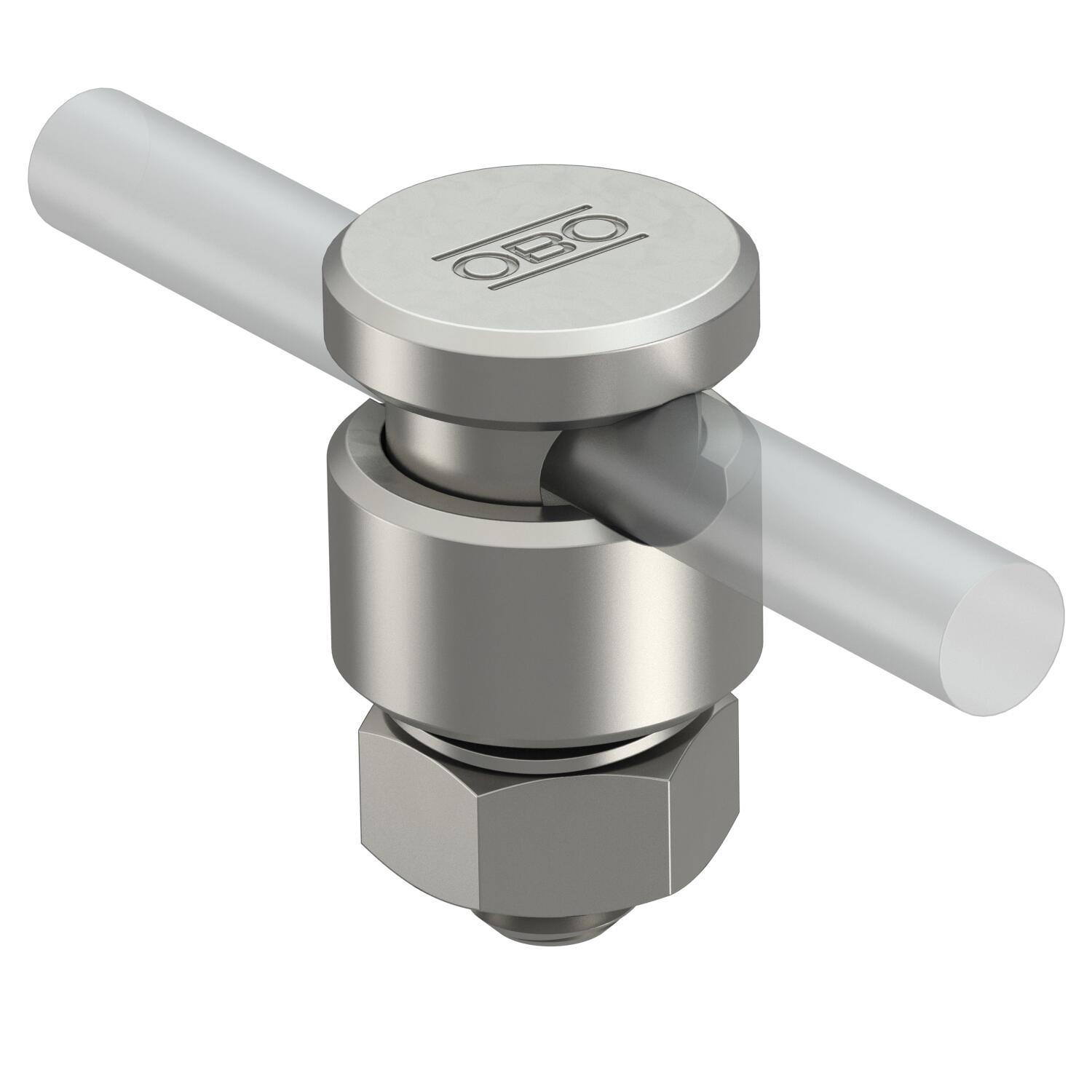

Connector, Rd 8−10 mm with pressure trough A2
Item no. 5304177 | EAN 4012196844715
- Product description
-
Product description• With 1 fix contact clamping screw, nut and serrated washer
• Including pre-mounted pressure sump, steel
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,3335 kg CO2e / 1 Piece Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material Stainless steel 1.4404 Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Connectors Type of fastening screw Clamping screw - All types
- Downloads
-
Data sheet 5001 N-V4A / 5304177 , 0.17MB , pdfEU declaration of conformity 5001 N-V4A / 5304177 , 0.06MB , pdfManufacturer declaration 5001 N-V4A / 5304177 , 0.04MB , pdfMounting instructions Mounting instructions, 5001 N-FT; 5001 N-VA; 5001 N-CU , 2.00MB , pdf
