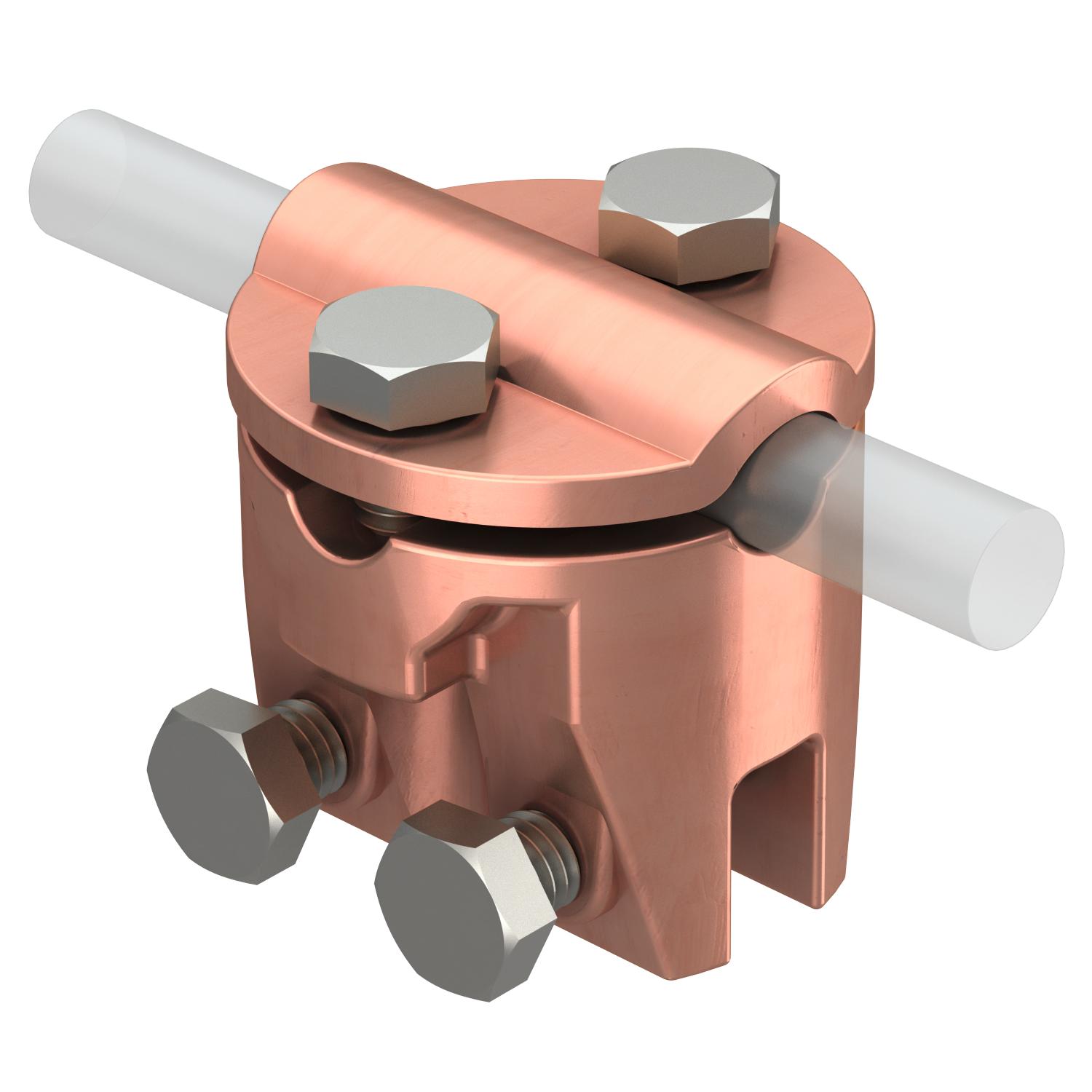

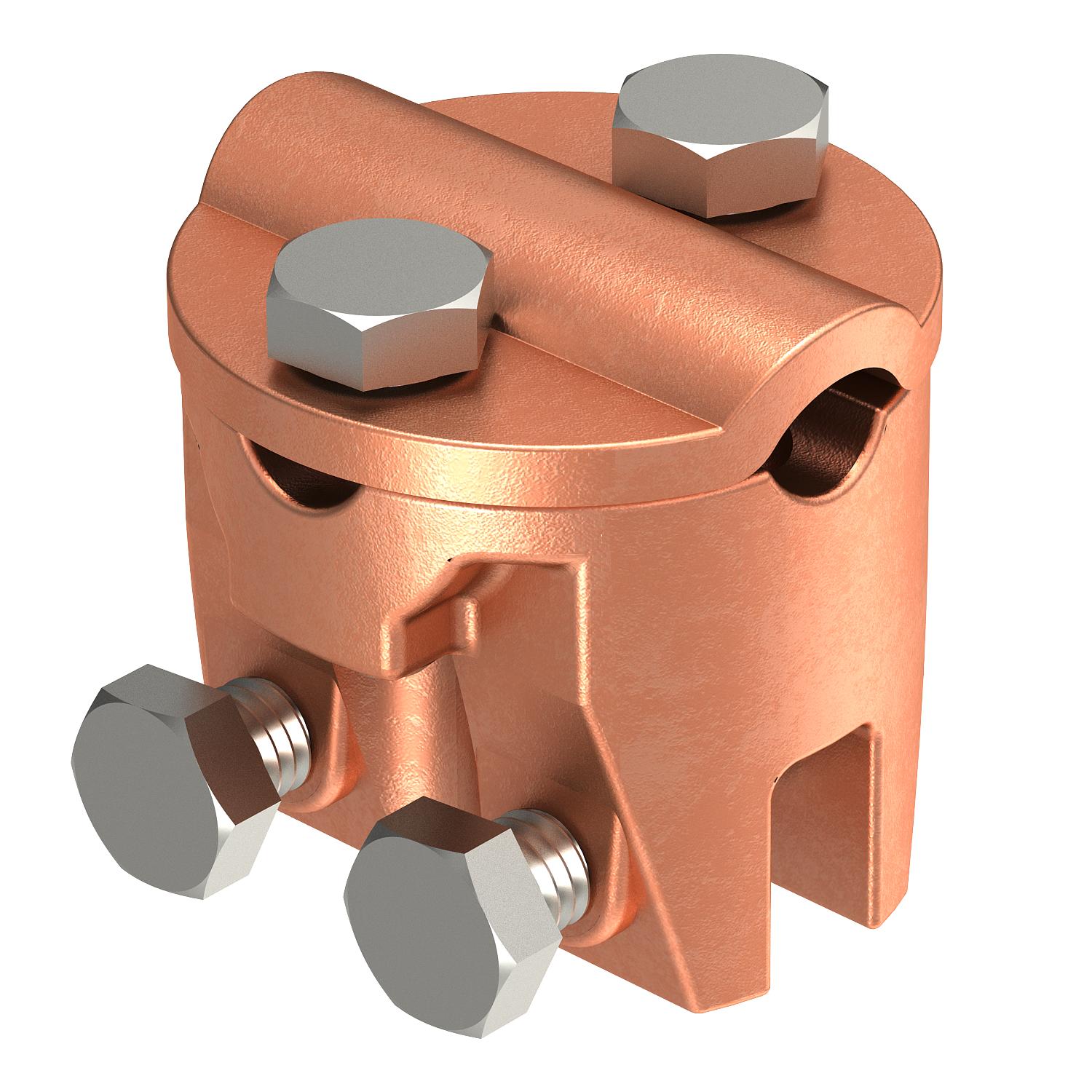

Folding clamp up to 7 mm plate thickness Cu
Item no. 5317053 | EAN 4012195420491
- Product description
-
Product description• Plate thickness to 7 mm
• For cable routing across and parallel to the plate with 4 hexagonal bolts M6 x 16
• Meets the requirements of VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data
Clamping range, max. 7 mm Dimension 8/10mm Fit Rd 8-10 mm Lightning current carrying capacity H/100 kA Material Die-cast zinc ROHS-conformant yes Surface Copper-plated Type of connector Folding clamp Type of fastening screw Hexagonal bolt Dimensions
Height 28 mm Length 35 mm Width 35 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,2426 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,2426 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 269 MS / 5317053 , 0.18MB , pdfEU declaration of conformity 269 MS / 5317053 , 0.06MB , pdfREACH Declaration of conformity 269 MS / 5317053 , 0.12MB , pdfRoHS Declaration of conformity 269 MS / 5317053 , 0.12MB , pdf
