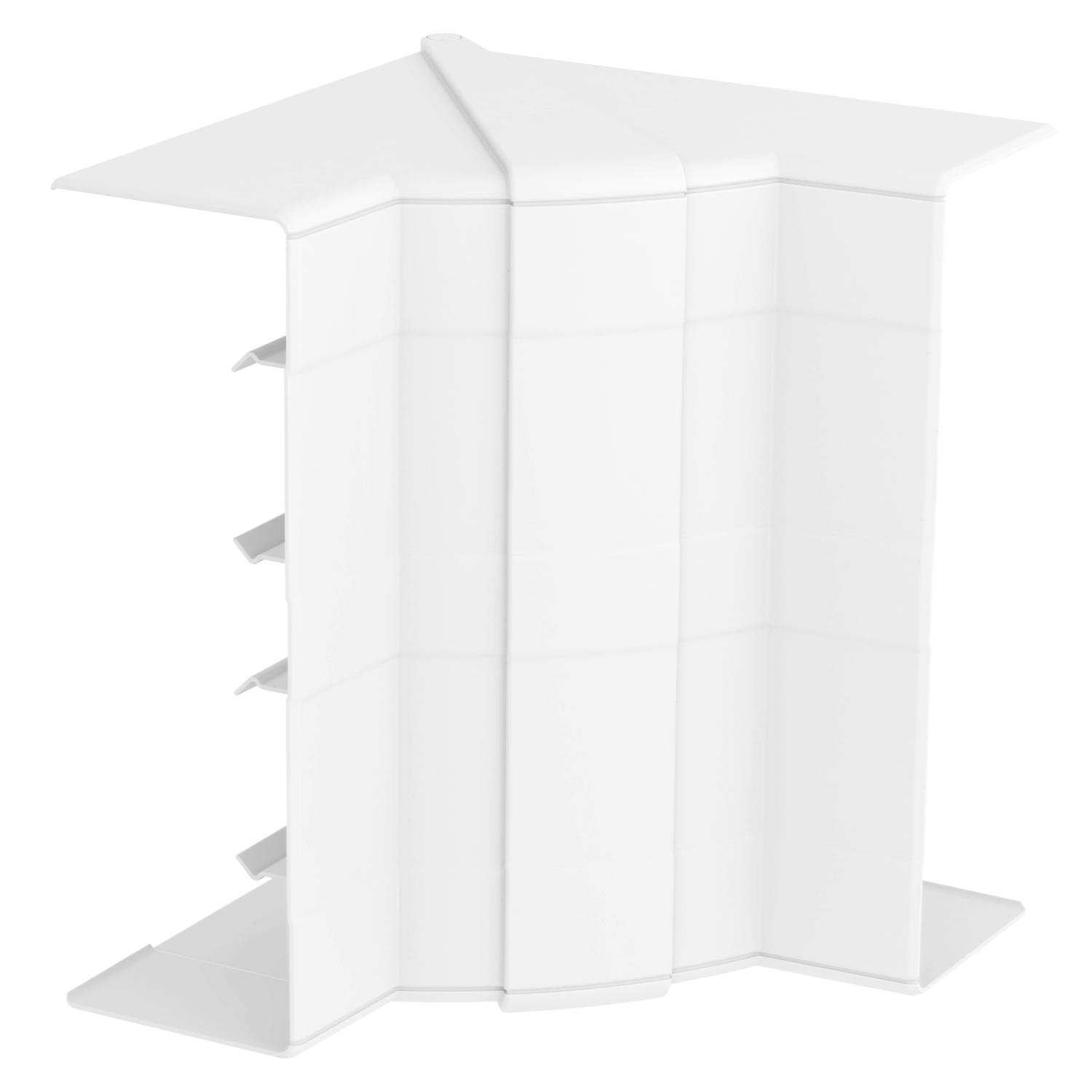

Internal corner hood, for Rapid 45-2 device installation trunking, type GK-53165

Item no. / Types

Colour

Product description

Product description

Internal corner for changing the direction of Rapid 45 device installation trunking.

Technical data

Angle range, max.	97 mm
Angle range, min.	83 mm
Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	1,0125 kg CO2e / 1 Piece
Colour	Pure white; RAL 9010
Cover mounting type	Cross-over

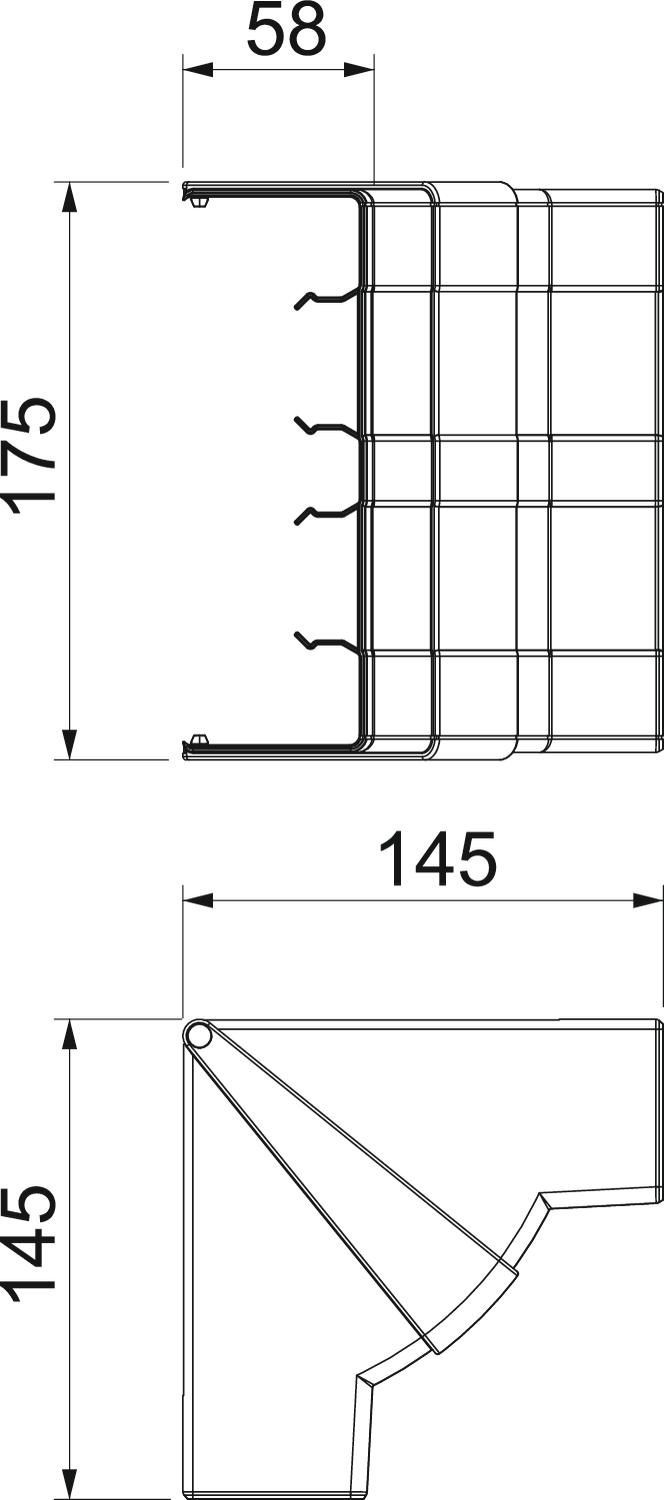

Dimension	175x145x145
Duct connector	no
for duct dimension	53 x 165 mm
for duct width	165 mm
for trunking height	53 mm
Halogen-free	yes

Height	58 mm
Length	145 mm
Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base	no
Number of covers	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-15 °C
Protection rating	IP40
Protection rating IK code	IK08
Protective film	no
Shape	Symmetrical
Version for	Hood fitting
Width	175 mm
