Offset wall and support bracket OL254
Item no. 6910059 | EAN 4012196081042
- Product description
-

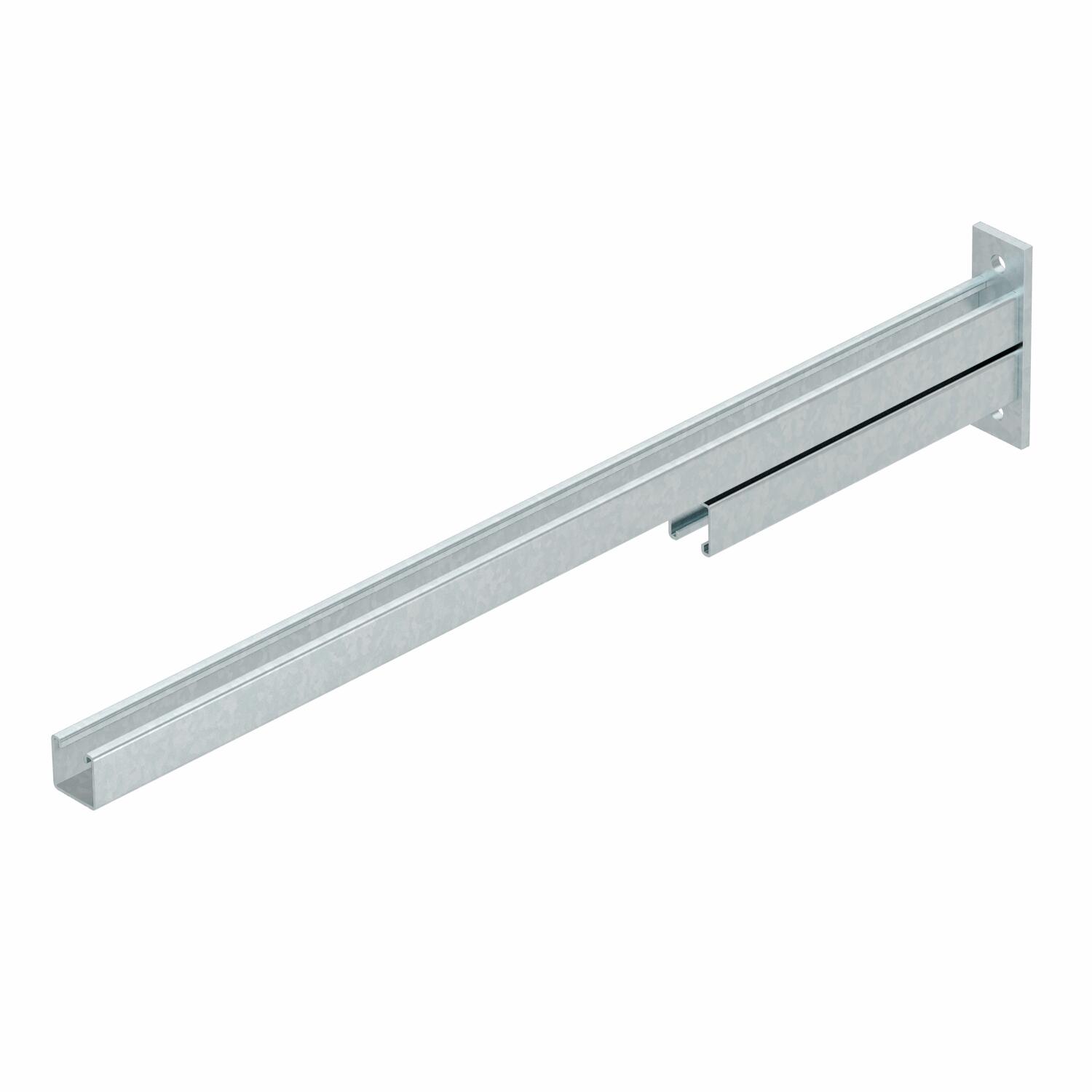

Product descriptionOL254S staggered cantilever bracket. Designed as a two offset profiles with welded head plate.
All the wall and support brackets for cable ladders and cable trays are 50 mm longer than the width of the appropriate cable ladder or cable tray.
-
- Technical data
-
Technical data

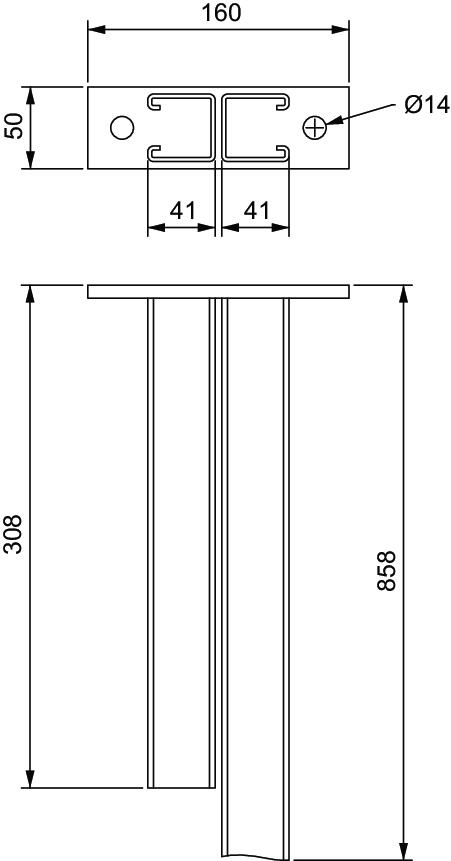

Dimension 1060x165x45 Height 350 mm Length 1050 mm Material Steel Surface Hot-dip galvanised Width 50 mm - All types
- Downloads
-
Data sheet OL254S 1050 HDG / 6910059 , 0.09MB , pdfCatalogue Cable support systems , 2.10MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity OL254S 1050 HDG / 6910059 , 0.10MB , pdfUK Declaration of Conformity OL254S 1050 HDG / 6910059 , 0.09MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
