Separating retainer 60 FS
Item no. 6062068 | EAN 4012195694540
- Product description
-

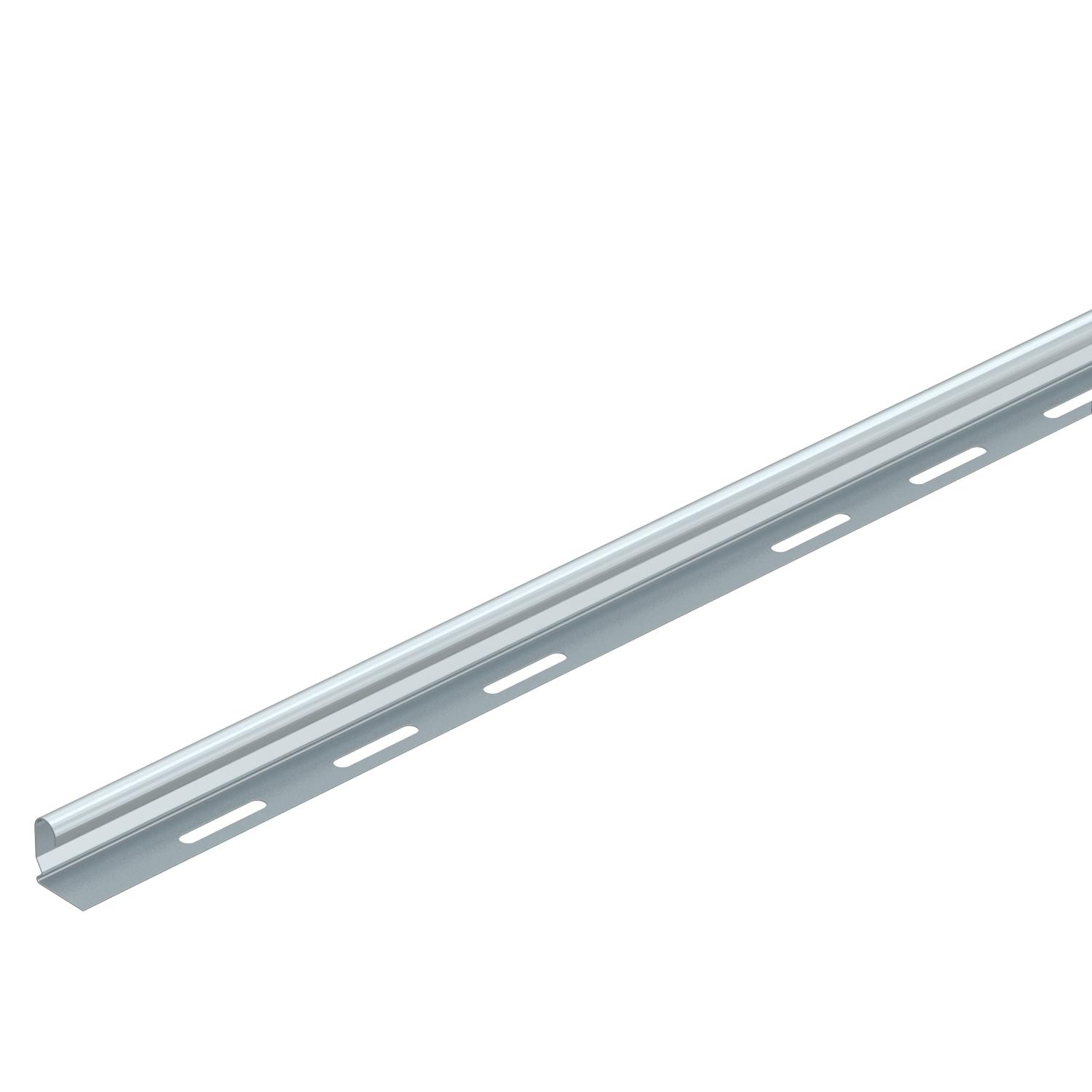

Product descriptionSeparating retainer for separation of cables of different voltages or functions.
-
- Technical data
-
Technical data
Colour zinc Dimension 60x2995 Fastening perforation (ETIM) no Fastening type Screw-on Maintain electrical functions no Material Steel Plate thickness 0,75 mm ROHS-conformant yes Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray yes Surface Strip galvanised Version for L profile Dimensions

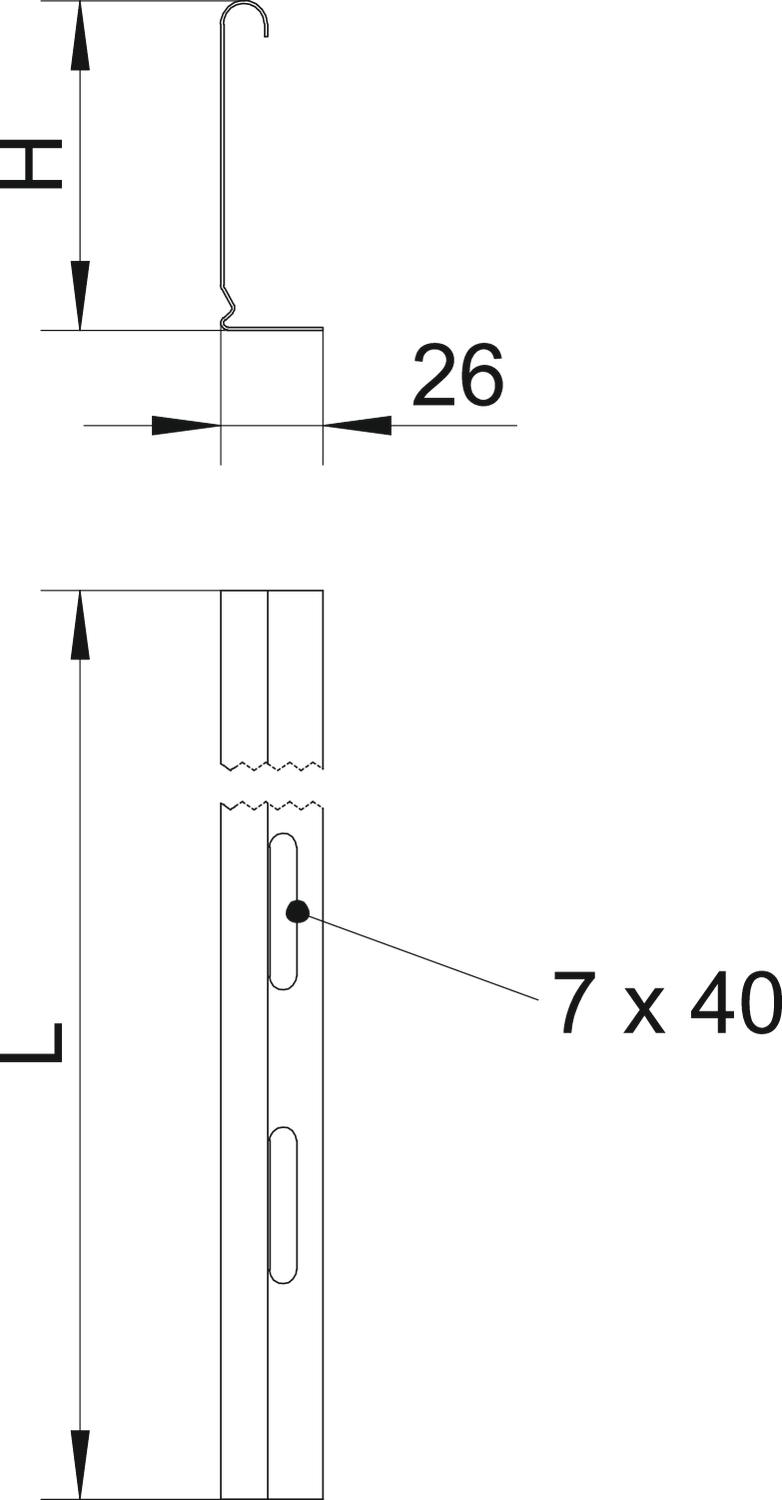

Dimension H 60 mm Dimension L 3000 mm Height 2 in Height 60 mm Length 10 ft Length 3000 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,219 kg CO2e / 1 Meter CO₂ Footprint (GWP) 1,219 kg CO₂e Declared Unit Metres Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet TSG 60 FS / 6062068 , 0.16MB , pdfEU declaration of conformity TSG 60 FS / 6062068 , 0.10MB , pdfUK Declaration of Conformity TSG 60 FS / 6062068 , 0.09MB , pdfREACH Declaration of conformity TSG 60 FS / 6062068 , 0.13MB , pdfRoHS Declaration of conformity TSG 60 FS / 6062068 , 0.13MB , pdfSelection aid Selection aid cable trays, screwable , 2.17MB , pdfSelection aid Selection aid for cable trays, Magic , 0.23MB , pdfMounting instructions Cable ladder systems , 6.45MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 12.16MB , pdfMounting instructions Screwable cable trays with fittings for screwing and clamping , 5.98MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
