Straight connector OL76 76 | 2 | Steel | Hot-dip galvanised

morepic-1

morepic-2

Straight connector OL76

Item no. 6903092 | EAN 4012196069781

Item no. / Types	6903092 / OL76 Splice Set

Height	76 mm

Plate thickness	2 mm

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

Straight connector set for the connection of the cable ladder types OL76 of side height 76 mm.

Technical data

Technical data

Dimension	245x65x15
Height	76 mm
Material	Steel

Plate thickness	2 mm
Suitable for cable tray system height	76 mm
Surface	Hot-dip galvanised

All types

All types

Types	Height	Plate thickness	Material	Surface	Item no.	Quantity	SSU
OL76 Splice Set	76 mm	2 mm	Steel	Hot-dip galvanised	6903092	piece	1 piece

Downloads

Data sheet OL76 Splice Set / 6903092 , 0.13MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Mounting instructions General information on the mounting , 2.65MB , pdf

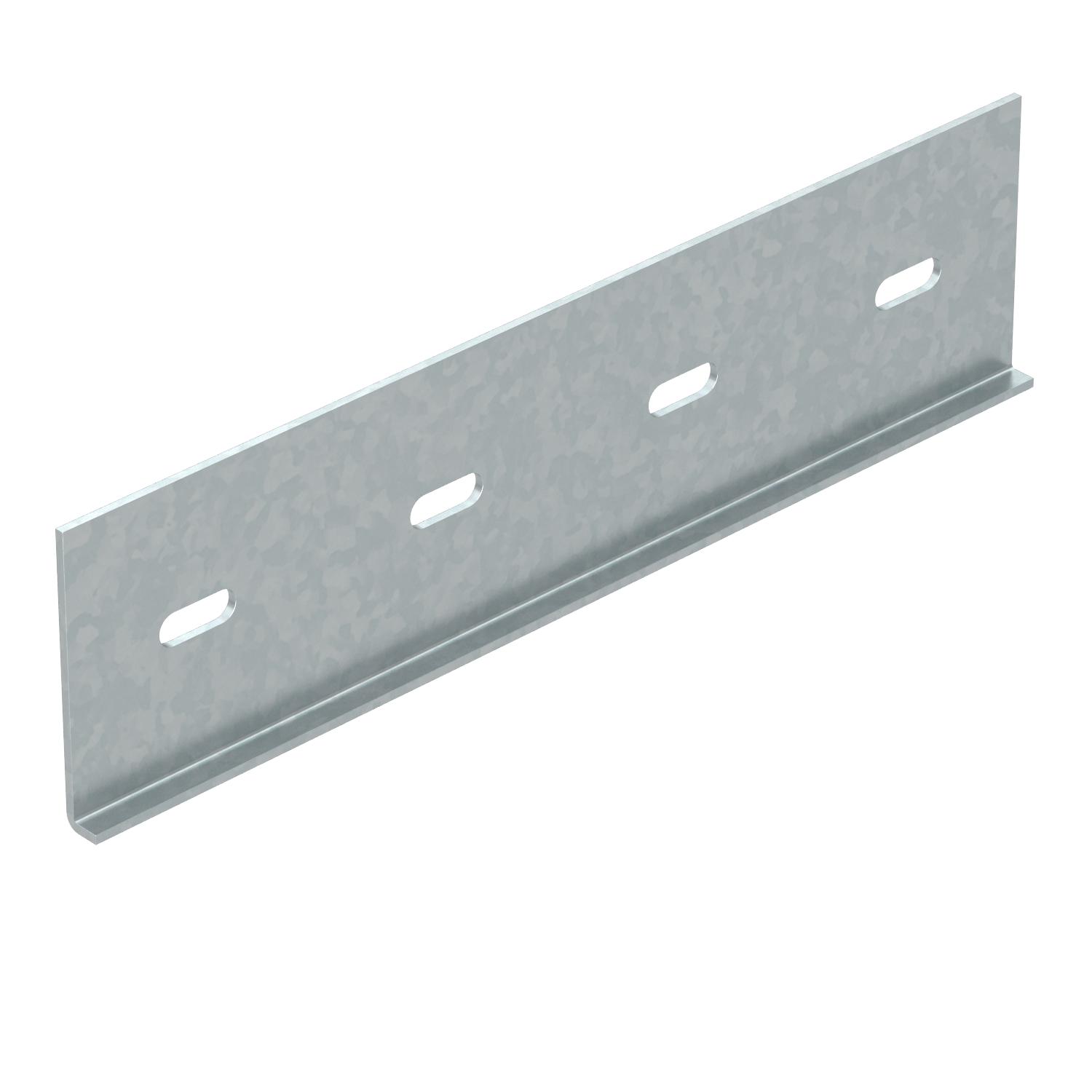

Product graphic OL76 Splice Set / 6903092, 54.09 kB, jpg

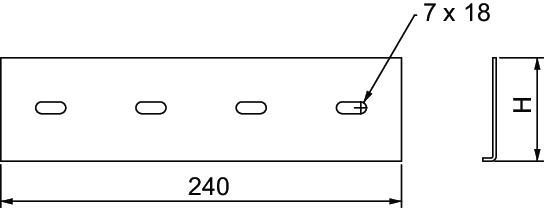

Scale drawing OL76 Splice Set / 6903092, 10.19 kB, jpg

OL76 Splice Set / 6903092
