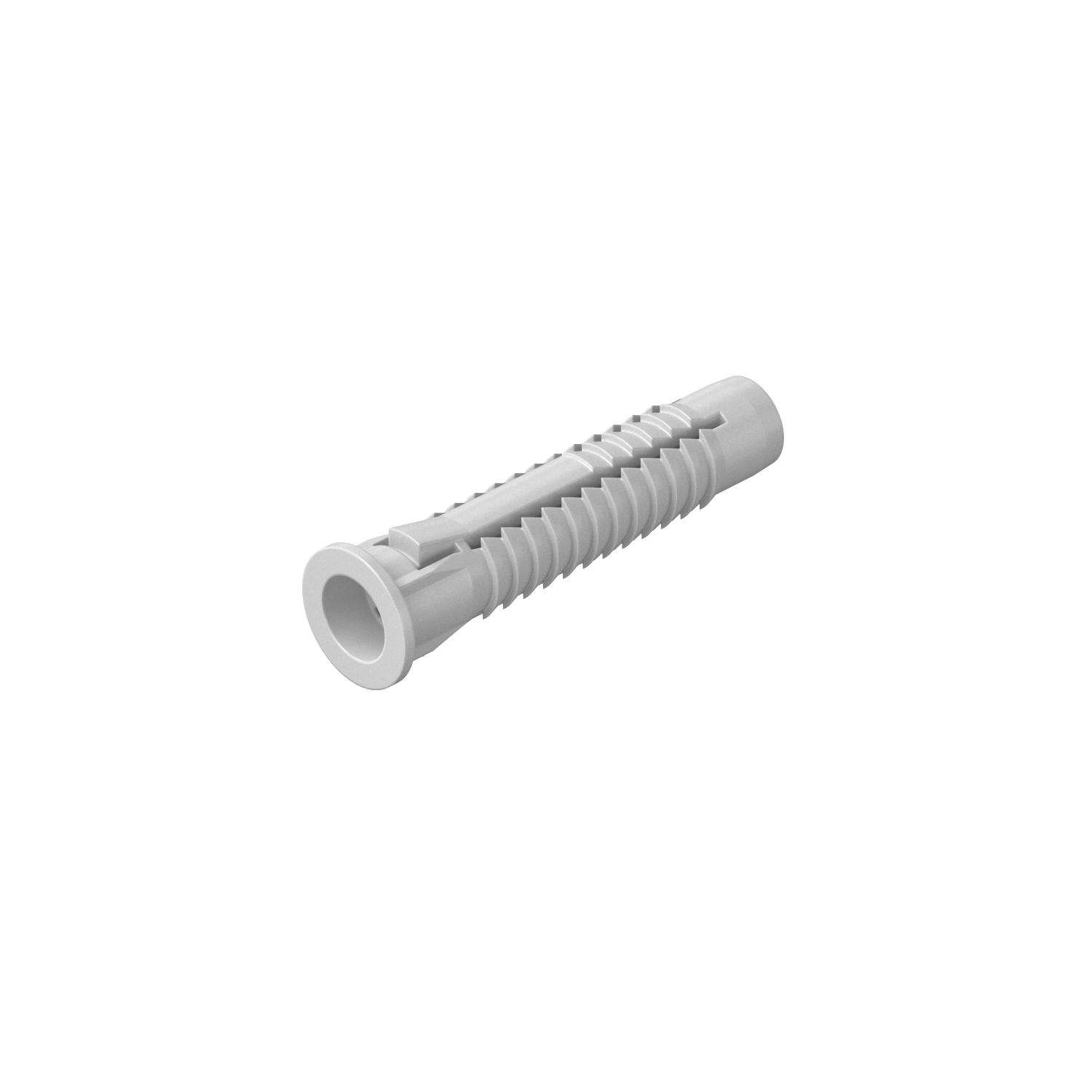

Universal anchor
Item no. 2347580 | EAN 4012196788521
- Product description
-
Product descriptionAlso suitable as a cavity anchor, with collars to prevent slipping. 3 tabs take up the torque.
Required minimum bolt length = anchor length + component thickness + 1 x bolt Ø.
Withdrawal force applies to wood screws of the largest bolt diameter in concrete of class B25.
Our safety value recommendation: 5x
-
- Technical data
-
Technical data

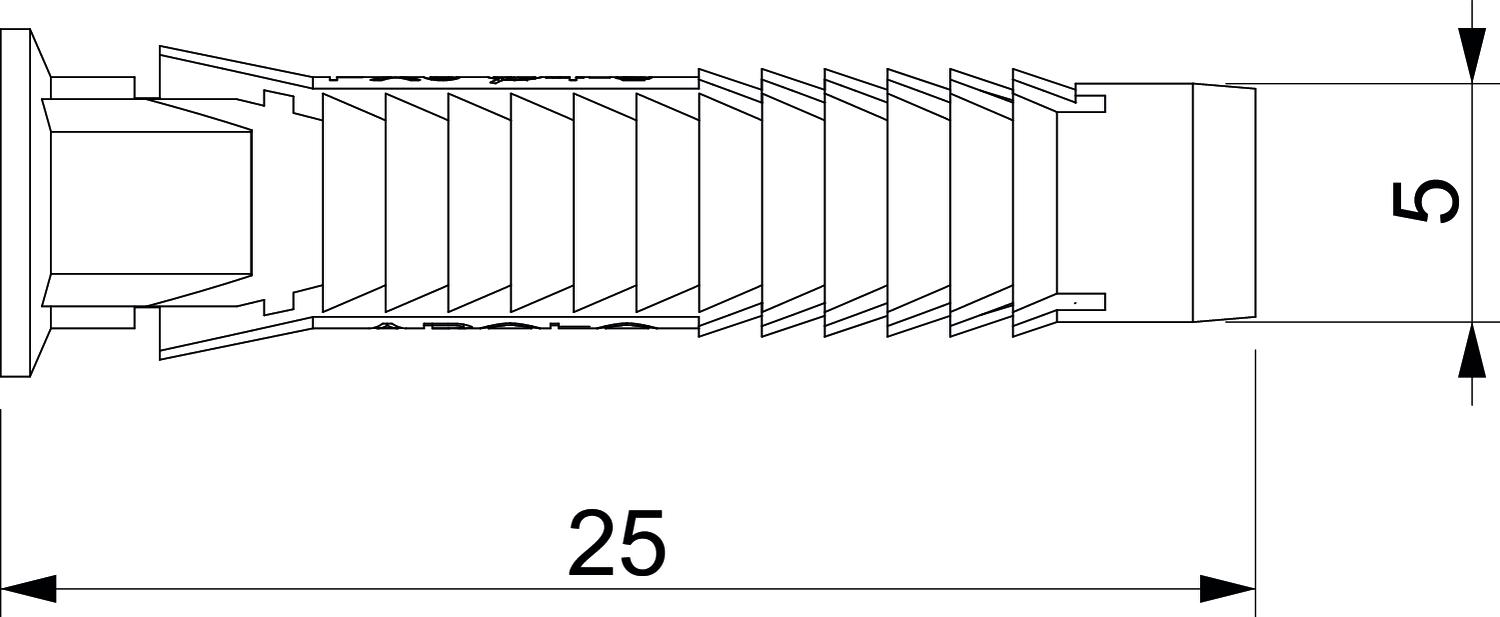

Colour Light grey Diameter 5 mm Dimension 5x25 Dimension D 5 mm Dimension L 25 mm Drill hole diameter, min. 5 mm Length 30 mm Material Polyethylene Pull-out value 200 N Suitable for fastening with cable ties no Suitable for hexagonal wood screw yes Version for Universal anchor With bolts no Wood screws 2,5-4 - All types
- Downloads
-
Data sheet 910 FX 5x25 / 2347580 , 0.16MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity 910 FX 5x25 / 2347580 , 0.12MB , pdfRoHS Declaration of conformity 910 FX 5x25 / 2347580 , 0.12MB , pdf
