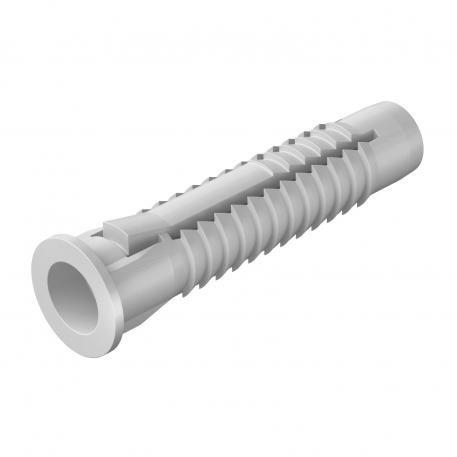

Universal anchor
Item no. 2347588 | EAN 4012196788569
- Product description
-
Product descriptionAlso suitable as a cavity anchor, with collars to prevent slipping. 3 tabs take up the torque.
Required minimum bolt length = anchor length + component thickness + 1 x bolt Ø.
Withdrawal force applies to wood screws of the largest bolt diameter in concrete of class B25.
Our safety value recommendation: 5x
-
- Technical data
-
Technical data
Colour Light grey Diameter 12 mm Dimension 12x60 Dimension D 12 mm Dimension L 60 mm Drill hole diameter, min. 12 mm Length 60 mm Material Polyethylene Pull-out value 1910 N Suitable for fastening with cable ties no Suitable for hexagonal wood screw yes Version for Universal anchor With bolts no Wood screws 8-10 - All types
- Downloads
-
Data sheet 910 FX 12x60 / 2347588 , 0.17MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity 910 FX 12x60 / 2347588 , 0.12MB , pdfRoHS Declaration of conformity 910 FX 12x60 / 2347588 , 0.12MB , pdf
